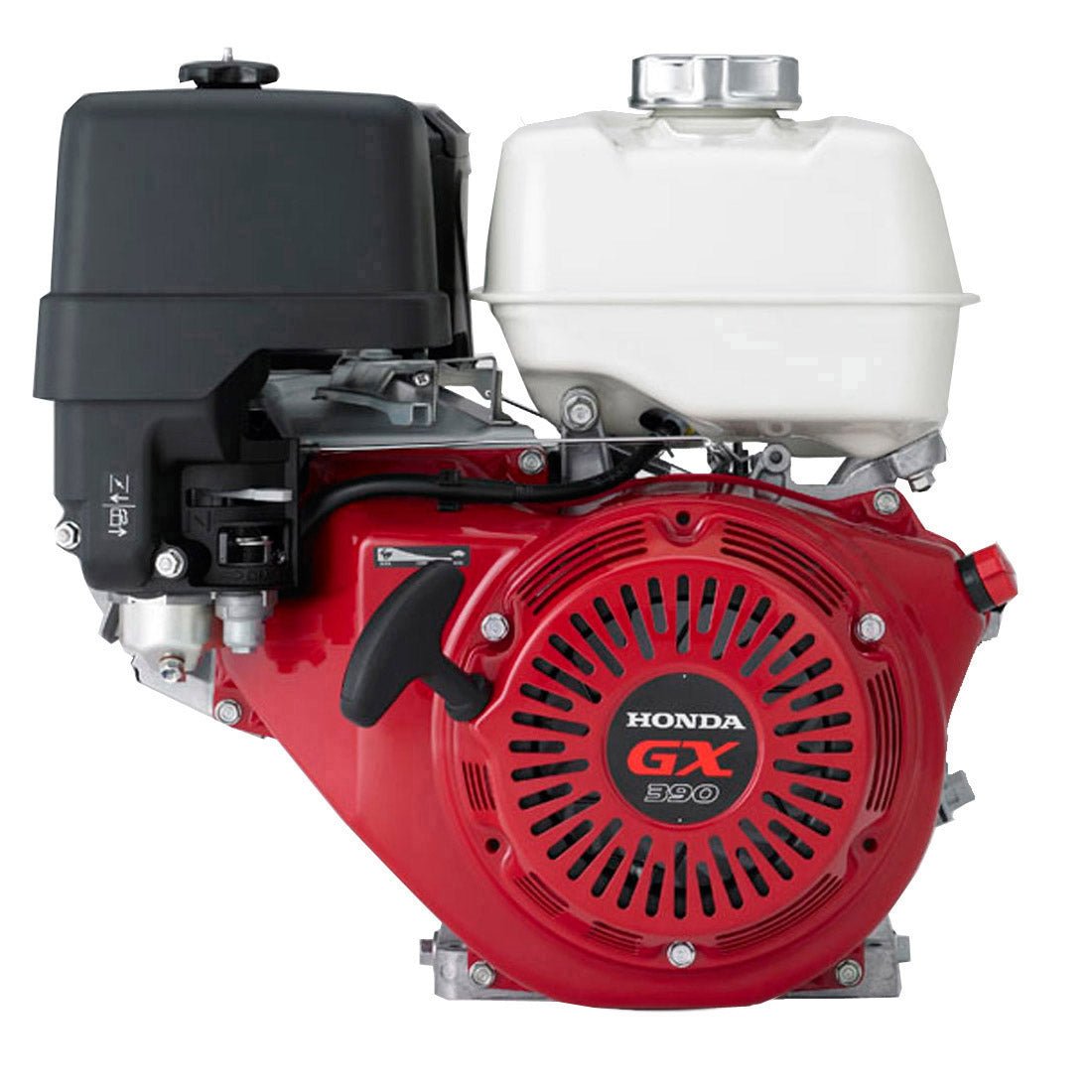

Honda GX390 13.0HP Petrol Engine (GX Series) – Manual Start / QX – 1 Inch Keyway
$1,280.00
Manual Start / QX – 1 Inch Keyway | SKU/model GX390-QX | Straight keyway shaft | 1 Inch | 88.5 mm.
Check Delivery Cost
Did you like this product? Add to favorites now and follow the product.
Description
Product overview
Honda GX390 13.0HP Petrol Engine (GX Series) – Manual Start / QX – 1 Inch Keyway is a separate simple product for the exact Manual Start / QX – 1 Inch Keyway engine option. It uses source SKU/model code GX390-QX.
Key specifications
| Brand | Honda |
|---|---|
| Engine model / series | Honda GX390 13.0HP Petrol Engine (GX Series) |
| Source option label | Manual Start / QX – 1 Inch Keyway |
| Source SKU / model code | GX390-QX |
| Horsepower | 13.0 HP |
| Engine displacement / cc | 389 cc |
| Bore | x Stroke (mm) 88 x 64 |
| Displacement | (cc) 389 |
| Fuel | Type Unleaded |
| Oil | Capacity (Ltr) 1.1 |
| Dimensions | LxWxH (mm) 405 x 450 x 443 |
| Various | Shaft options & reduction options available as per below |
| QX Keyway Shaft | 25.4 mm (1") Diameter x 88.5mm Long |
| Source specification | QNR – QX Keyway Shaft with 18 Amp Charging System |
| Starter type | Manual Start |
| Shaft type | Straight keyway shaft |
| Shaft diameter / size | 1 Inch |
| Shaft length | 88.5 mm |
| Shaft type / keyway / threaded / taper details | Manual Start / QX – 1 Inch Keyway |
| Charging output | 18 Amp Charging |
| Fuel tank | 6.5 L |
| Dry weight | 40.0 kg |
| Fitment/application notes | Use as replacement engine only where model, shaft and application requirements match. |
Typical applications / fitment
Use as a replacement engine only where the engine model, starter arrangement, shaft type, shaft size, shaft length, mounting and application requirements match.
Please confirm your engine model, shaft type, shaft size, shaft length and application before ordering. If you are unsure, contact Hampton Mower Centre with your model/type code and photos.
Need workshop support or a repair?
For repairs and servicing, Hampton Mowerpower is the physical workshop at 87 Ludstone Street, Hampton VIC 3188. Commercial equipment repairs are normally targeted at approximately 1-2 business days and domestic repairs approximately 3-4 business days, subject to diagnosis, approval, parts availability, repair complexity and workshop conditions.
Request a repair | View repair services | Call (03) 9598 6741
Not sure if the machine is worth repairing or whether an engine can be replaced? Ask first with the equipment type, brand/model and symptoms.
Need a repair before replacing the machine?
Commercial Repair Priority — Typical Turnaround 1–2 Business Days. Domestic Repairs — Typical Turnaround 3–4 Business Days. Typical turnaround applies once the machine has been assessed and the repair is approved. Special-order or backordered parts, major engine work, unusual faults or additional diagnosis may take longer.
Repair labour: Lawn Mower $89 + parts; Chainsaw $89 + parts; Line Trimmer / Brushcutter $89 + parts. Minor repairs $22 / $44 / $55 + parts depending on the work required. Larger / commercial equipment including Demo Saw, Jackhammer, Generator, Ride-On Mower, Wacker / Compaction Equipment and Shredder: $155 + parts.
3-Month Domestic Repair & Service Warranty. This warranty relates to the domestic repair/service work performed.
Book a repair | View repair pricing | Call (03) 9598 6741 | Get directions
Additional information
| Weight | 40 kg |
|---|---|
| Dimensions | 40.5 × 45 × 44.3 cm |
