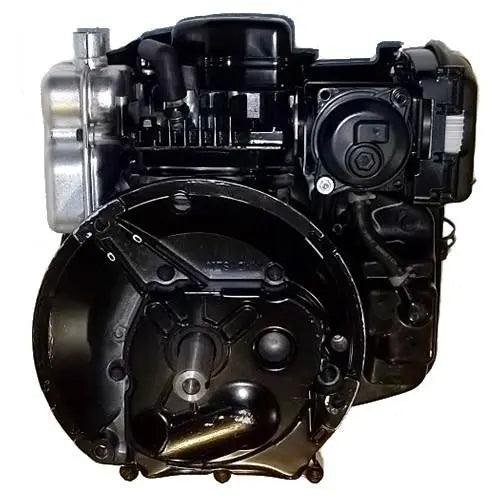

Briggs & Stratton 4.0hp (625EX Series) Lawnmower Engine

Price range: $339.00 through $439.00

Check Delivery Cost

Enter your postcode to check delivery options before checkout.
Have a Question? Ask a Specialist

(+03) 9598 6741 Start Live Chat

Lowest Prices

Price match guarantee

Guaranteed Fitment.

Always the correct part

Outdoor Experts.

We know our products

Friendly & Trustworthy

No Pressure, Just Solutions

Description

DESCRIPTION

Cutting your lawn has never been easier. New 625 Series? lawn mower engines feature the ReadyStart?starting system, so there’s no priming or choking ?only a pull for power. It’s the lightest push mower engine in its class by 30 percent, which means it’s easier to maneuver.Add that to other enhancements that reduce noise and vibration, all while increasing comfort and extending engine life, and you’ve got one great solution to your lawn care challenges.


Typical Applications 😕This Briggs & Stratton 625EX Series engine is a ideal replacement engine for Rover, Masport, Supaswift & Victa lawn mowers. It is the direct replacement for all previous Briggs & Stratton ‘Quattro’ and ‘Quantum’ Series models.

SPECIFICATIONS

  • Compact and Lightweight
  • Toll Less Air Cleaner Cover
  • Overhead Valve (OHV) Engine Design
  • Lo-Tone Muffler
  • 7/8′ Diameter / 70ml Long Keyway Shaft for Masport, Rover etc or 50ml Long Keyway Shaft for Victa Mowers
  • 150cc / Vertical Shaft
  • 13.8 (in) x 12.2 (in) x 9.6 (in) (LxWxH)
  • 1 Year Warranty – Australia Wide

SPECIFICATIONS

Engine Series

Briggs & Stratton?625EX Series

Engine Style

Vertical

Cylinders

1

Engine Type

4 Cycle OHV

Cooling System

Air

Dry Weight

8.2kg

Engine CC

150 cc

Engine HP

4HP

Cylinder Bore Type

Aluminum?

Bore

65.6 mm

Stroke

44.45 mm?

Starting System

Recoil Only

Ignition System

Electronic Spark

Oil Filter

No

Oil capacity

0.5 ltrs

Muffler

Yes

Air Cleaner

Dry Paper

Fuel Tank

1 ltr?

Crankshaft Rotation

Counter Clockwise

Shaft Size

7/8 x 50mm or 7/8 x 70mm?

Crankshaft Type

Straight Keyway

Crankshaft Diameter

7/8

Crankshaft Length

50mm or 70mm

Crankshaft End Tapped Size

Varies

Crankshaft Keyway Width

3/16

Warranty

2 Years

Dimensions

351 x 308 x 249 mm (LxWxH)

Additional information

Weight 15 kg
Dimensions 70 × 50 × 45 cm
