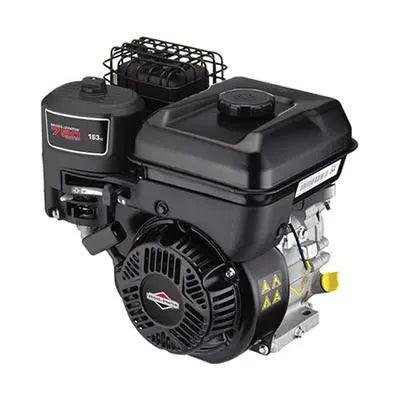

Briggs & Stratton 5.0HP OHV Petrol Engine (750 Series) BRIGGS & STRATTON
Briggs & Stratton 5.0HP OHV Petrol Engine (750 Series) BRIGGS & STRATTON

Briggs & Stratton 5.0HP OHV Petrol Engine (750 Series)

Price range: $449.00 through $489.00

Check Delivery Cost

Enter your postcode to check delivery options before checkout.

Did you like this product? Add to favorites now and follow the product.

Add to wishlist
Need product advice?

Call Hampton Mower Centre on (03) 9598 6741

Low Prices

Price match guarantee

Expert Product Advice.

Contact Hampton Mower Centre for fitment and parts support.

In-House Experts.

We know our products

Easy Returns.

Quick & Hassle Free

Categories: ,
Tag:

Description

DESCRIPTION

This Briggs & Stratton 750 series is a powerful 5.0hp petrol engine which utilities (OHV) overhead valve design technology. It features an automotive style air filter, cast iron cylinder sleeve, and dual bearings for longer life. This Briggs & Stratton has a great reputation for easy starting and great reliability.

Typical Applications :-?This Briggs & Stratton 5.0hp petrol engine is a ideal replacement engine for most reel mowers on the market, other applications are cement mixes, tillers etc

SPECIFICATIONS

  • Splash Lubrication System
  • Automotive style air filter
  • Cast Iron Cylinder Sleeve
  • Over Head Valve Engine (OHV)
  • Dual Ball Bearings

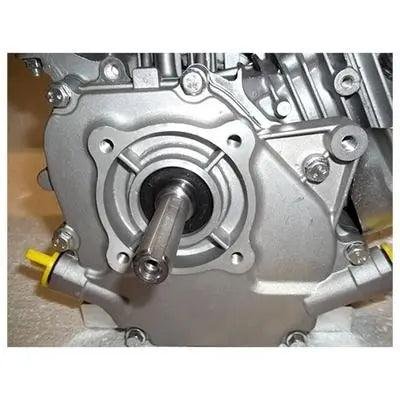

  • Shaft Options :- 3/4 Diamater Keyway Shaft or Tapered for a generator
  • Compact Design
  • Model 106232
  • 2 Year Warranty – Australia Wide

SPECIFICATIONS

Engine Series

Briggs & Stratton?750 Series

Engine Style

Horizontal

Cylinders

1

Engine Type

4 Cycle OHV

Cooling System

Air

Dry Weight

13.2 kg?

Engine CC

163 cc

Engine HP

5HP

Cylinder Bore Type

Cast Iron

Bore

68mm

Stroke

45mm

Starting System

Recoil Start

Ignition System

Electronic Spark

Oil Filter

No

Oil capacity

0.61 ltr

Muffler

Included

Air Cleaner

Dual Element

Fuel Tank

3.3 ltr

Crankshaft Rotation

Counter Clockwise

Shaft Size

3/4 Keyway or Tapered?

Crankshaft Type

Keyway or Tapered

Crankshaft Diameter

3/4

Crankshaft Length

2″ 27/64

Crankshaft End Tapped Size

Various

Crankshaft Keyway Width

3/16

Warranty

2 Years

Dimensions

364 x 385 x 325 mm (LxWxH)

Need workshop support or a repair?

For repairs and servicing, Hampton Mowerpower is the physical workshop at 87 Ludstone Street, Hampton VIC 3188. Commercial equipment repairs are normally targeted at approximately 1-2 business days and domestic repairs approximately 3-4 business days, subject to diagnosis, approval, parts availability, repair complexity and workshop conditions.

Request a repair | View repair services | Call (03) 9598 6741

Not sure if the machine is worth repairing or whether an engine can be replaced? Ask first with the equipment type, brand/model and symptoms.

Need a repair before replacing the machine?

Commercial Repair Priority — Typical Turnaround 1–2 Business Days. Domestic Repairs — Typical Turnaround 3–4 Business Days. Typical turnaround applies once the machine has been assessed and the repair is approved. Special-order or backordered parts, major engine work, unusual faults or additional diagnosis may take longer.

Repair labour: Lawn Mower $89 + parts; Chainsaw $89 + parts; Line Trimmer / Brushcutter $89 + parts. Minor repairs $22 / $44 / $55 + parts depending on the work required. Larger / commercial equipment including Demo Saw, Jackhammer, Generator, Ride-On Mower, Wacker / Compaction Equipment and Shredder: $155 + parts.

3-Month Domestic Repair & Service Warranty. This warranty relates to the domestic repair/service work performed.

Book a repair | View repair pricing | Call (03) 9598 6741 | Get directions

Additional information

Weight15 kg
Dimensions70 × 50 × 45 cm
