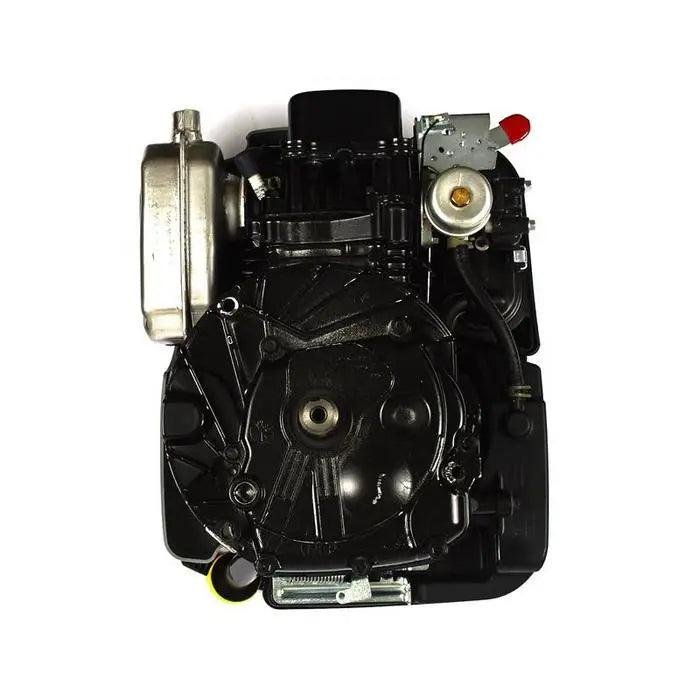

Briggs & Stratton 6.0HP Petrol Engine (850 Series)

Price range: $585.00 through $639.00

Check Delivery Cost

Enter your postcode to check delivery options before checkout.

Did you like this product? Add to favorites now and follow the product.

Add to wishlist
Need product advice?

Call Hampton Mower Centre on (03) 9598 6741

Low Prices

Price match guarantee

Expert Product Advice.

Contact Hampton Mower Centre for fitment and parts support.

In-House Experts.

We know our products

Easy Returns.

Quick & Hassle Free

Categories: ,
Tag:

Description

Description

DESCRIPTION

The Briggs & Stratton 850 Series were designed to be best in its class combining power, performance, features and size. These engines offer consumers and professionals commercial grade features including easy starting, quieter operation, longer life.

Typical Applications 😕This Briggs & Stratton 850 series engine is a ideal replacement engine for most push lawn mowers on the market. It is a ideal replacement for all previous Briggs & Stratton smaller ‘Quantum’ and ‘XM’ models, and Intek ‘Edge’ models.

SPECIFICATIONS

  • Cast Iron Bore – Electronic Ignition
  • One Start Carburetor
  • Over Head Valve Engine
  • Super Lo-Tone Muffler
  • 7/8′ Diameter / 70ml Long Keyway Shaft or 25mm Diameter / 70ml Long Keyway
  • 190cc / Vertical Shaft
  • 15.6 (in) x 12.8 (in) x 9.4 (in) (LxWxH)
  • 2 Year Warranty – Australia Wide

SPECIFICATIONS

Engine Series

Briggs & Stratton?850 Series

Engine Style

Vertical

Cylinders

1

Engine Type

4 Cycle OHV

Cooling System

Air

Dry Weight

13 kg?

Engine CC

190 cc

Engine HP

6HP

Cylinder Bore Type

Cast Iron

Bore

68.3 mm?

Stroke

51.8 mm

Starting System

Recoil?

Ignition System

Electronic Spark

Oil Filter

No

Oil capacity

0.7 ltr

Muffler

Lo Tone Muffler

Air Cleaner

Dry Paper

Fuel Tank

1.1 ltr

Crankshaft Rotation

Counter Clockwise

Shaft Size

7/8 x 70mm or 25mm x 70mm

Crankshaft Type

Straight Keyway

Crankshaft Diameter

7/8 or 25mm?

Crankshaft Length

70mm

Crankshaft End Tapped Size

Varies

Crankshaft Keyway Width

Varies

Warranty

2 Years

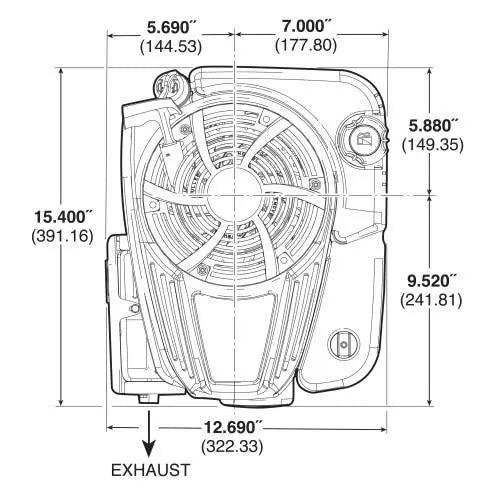

Dimensions

397 x 326 x 238 mm (LxWxH)
