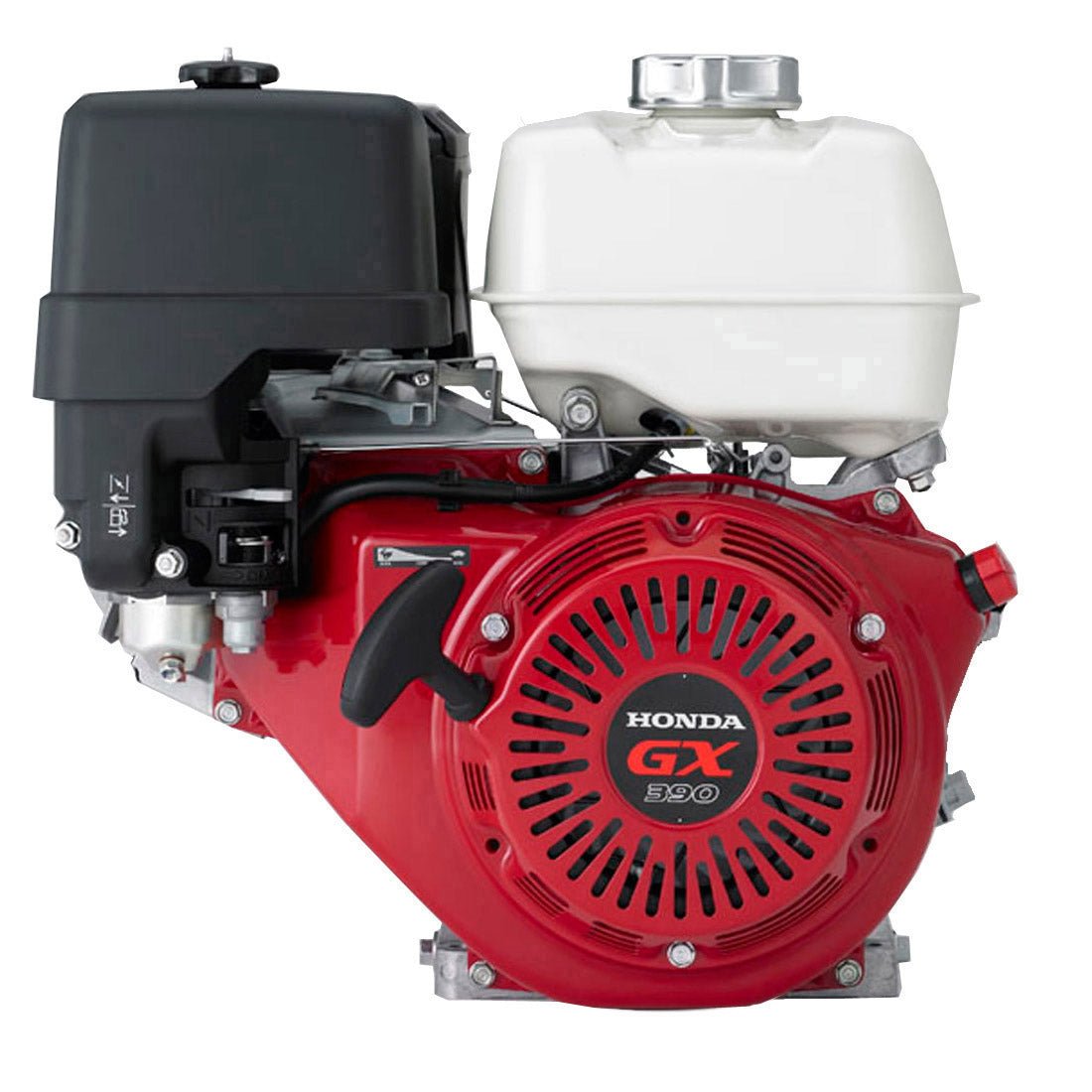

Honda GX390 13.0HP Petrol Engine (GX Series) - Electric Start / QX - 1 Inch Keyway

Honda GX390 13.0HP Petrol Engine (GX Series) – Electric Start / QX – 1 Inch Keyway

$1,550.00

Electric Start / QX – 1 Inch Keyway | SKU/model GX390-QXE | Straight keyway shaft | 1 Inch | 88.5 mm.

In Stock

Check Delivery Cost

Enter your postcode to check delivery options before checkout.
Have a Question? Ask a Specialist

(+03) 9598 6741 Start Live Chat

Competitive Pricings

Price match guarantee

Guaranteed Fitment.

Always the correct part

Outdoor Experts.

We know our products

Friendly & Trustworthy

No Pressure, Just Solutions

Category:

Description

Product overview

Honda GX390 13.0HP Petrol Engine (GX Series) – Electric Start / QX – 1 Inch Keyway is a separate simple product for the exact Electric Start / QX – 1 Inch Keyway engine option. It uses source SKU/model code GX390-QXE.

Key specifications

Brand Honda
Engine model / series Honda GX390 13.0HP Petrol Engine (GX Series)
Source option label Electric Start / QX – 1 Inch Keyway
Source SKU / model code GX390-QXE
Horsepower 13.0 HP
Engine displacement / cc 389 cc
Bore x Stroke (mm) 88 x 64
Displacement (cc) 389
Fuel Type Unleaded
Oil Capacity (Ltr) 1.1
Dimensions LxWxH (mm) 405 x 450 x 443
Various Shaft options & reduction options available as per below
QX Keyway Shaft 25.4 mm (1") Diameter x 88.5mm Long
Source specification QNR – QX Keyway Shaft with 18 Amp Charging System
Starter type Electric Start
Shaft type Straight keyway shaft
Shaft diameter / size 1 Inch
Shaft length 88.5 mm
Shaft type / keyway / threaded / taper details Electric Start / QX – 1 Inch Keyway
Charging output 18 Amp Charging
Fuel tank 6.5 L
Dry weight 40.0 kg
Fitment/application notes Use as replacement engine only where model, shaft and application requirements match.

Typical applications / fitment

Use as a replacement engine only where the engine model, starter arrangement, shaft type, shaft size, shaft length, mounting and application requirements match.

Please confirm your engine model, shaft type, shaft size, shaft length and application before ordering. If you are unsure, contact Hampton Mower Centre with your model/type code and photos.

Additional information

Weight 40 kg
Dimensions 40.5 × 45 × 44.3 cm
