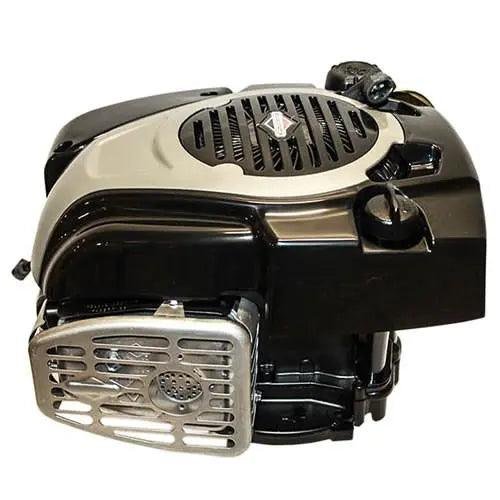

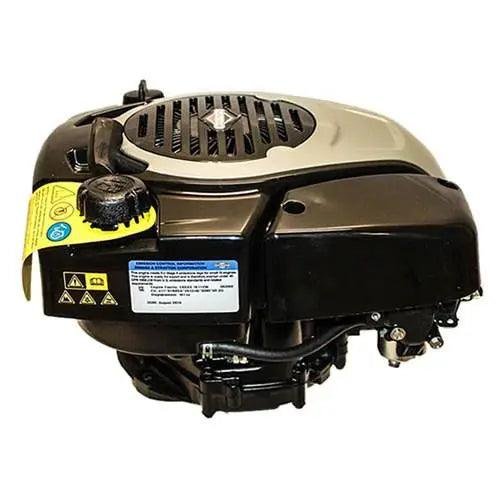

Briggs & Stratton 5.5hp (750EX I/C Series) Lawnmower Engine

Price range: $469.00 through $569.00

Check Delivery Cost

Enter your postcode to check delivery options before checkout.

Did you like this product? Add to favorites now and follow the product.

Add to wishlist
Need product advice?

Call Hampton Mower Centre on (03) 9598 6741

Low Prices

Price match guarantee

Expert Product Advice.

Contact Hampton Mower Centre for fitment and parts support.

In-House Experts.

We know our products

Easy Returns.

Quick & Hassle Free

Categories: ,
Tag:

Description

Description


DESCRIPTION

The 750EX SERIES? DOV? engine delivers breakthrough performance driven by technology that makes a difference you can SEE, FEEL and HEAR. The patented Direct Overhead Valve (DOV?) engine delivers more torque, improved sound quality, and less noise and vibration than competitive engines in the same class. The 750EX SERIES engines are ideal to power lawnmowers for gardens up to 1500 square meters.

SPECIFICATIONS

  • Model – 100802
  • Gross Torque – 9.8Nm
  • Displacement cc – 161
  • Cylinder – Cast Iron
  • Bore & Stroke – 64.0?x?50.0
  • Fuel Tank Capacity – 1 Litre
  • Oil Capacity – 0.6 Litre
  • Dry Weight – 11.1kgs
  • Dimensions – 369 x 325?x 254mm
  • Features ?- DOV Technology, ReadyStart, Mechanical Governor, Performance Muffler, High Oil Fill Tube, Paper Air Filter (Oval)

SPECIFICATIONS

Engine Series

Briggs & Stratton?750EX Series

Engine Style

Vertical

Cylinders

1

Engine Type

4 Cycle OHV

Cooling System

Air

Dry Weight

11.1 kg?

Engine CC

161 cc

Engine HP

5.5HP

Cylinder Bore Type

Cast Iron

Bore

64mm?

Stroke

50mm

Starting System

Recoil

Ignition System

Electronic Spark

Oil Filter

No

Oil capacity

0.6 ltr

Muffler

Lo Tone Muffler

Air Cleaner

Dry Paper

Fuel Tank

1 ltr

Crankshaft Rotation

Counter Clockwise

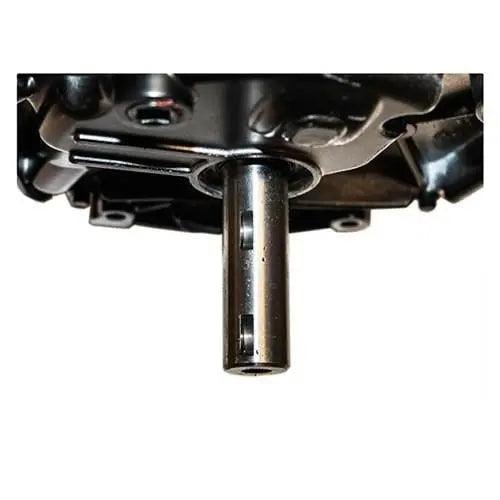

Shaft Size

Three Options: 7/8 x 50mm or 7/8 x 70mm or 25mm x 70mm

Crankshaft Type

Straight Keyway

Crankshaft Diameter

7/8 or 25mm

Crankshaft Length

50mm or 70mm

Crankshaft End Tapped Size

Various

Crankshaft Keyway Width

Various

Warranty

2 Years

Dimensions

369 x 325 x 254 mm (LxWxH)
