Honda GX390 13.0HP Petrol Engine (GX Series) - Electric Start / QNR - 1 Inch Keyway -18 amp Charging

Honda GX390 13.0HP Petrol Engine (GX Series) – Electric Start / QNR – 1 Inch Keyway -18 amp Charging

$1,650.00

Electric Start / QNR – 1 Inch Keyway -18 amp Charging | SKU/model GX390-QNR2 | 25.4 mm (1") diameter | 88.5 mm | 18 Amp charging system.

In Stock

Check Delivery Cost

Enter your postcode to check delivery options before checkout.
Have a Question? Ask a Specialist

(+03) 9598 6741 Start Live Chat

Competitive Pricings

Price match guarantee

Guaranteed Fitment.

Always the correct part

Outdoor Experts.

We know our products

Friendly & Trustworthy

No Pressure, Just Solutions

Category:

Description

Product overview

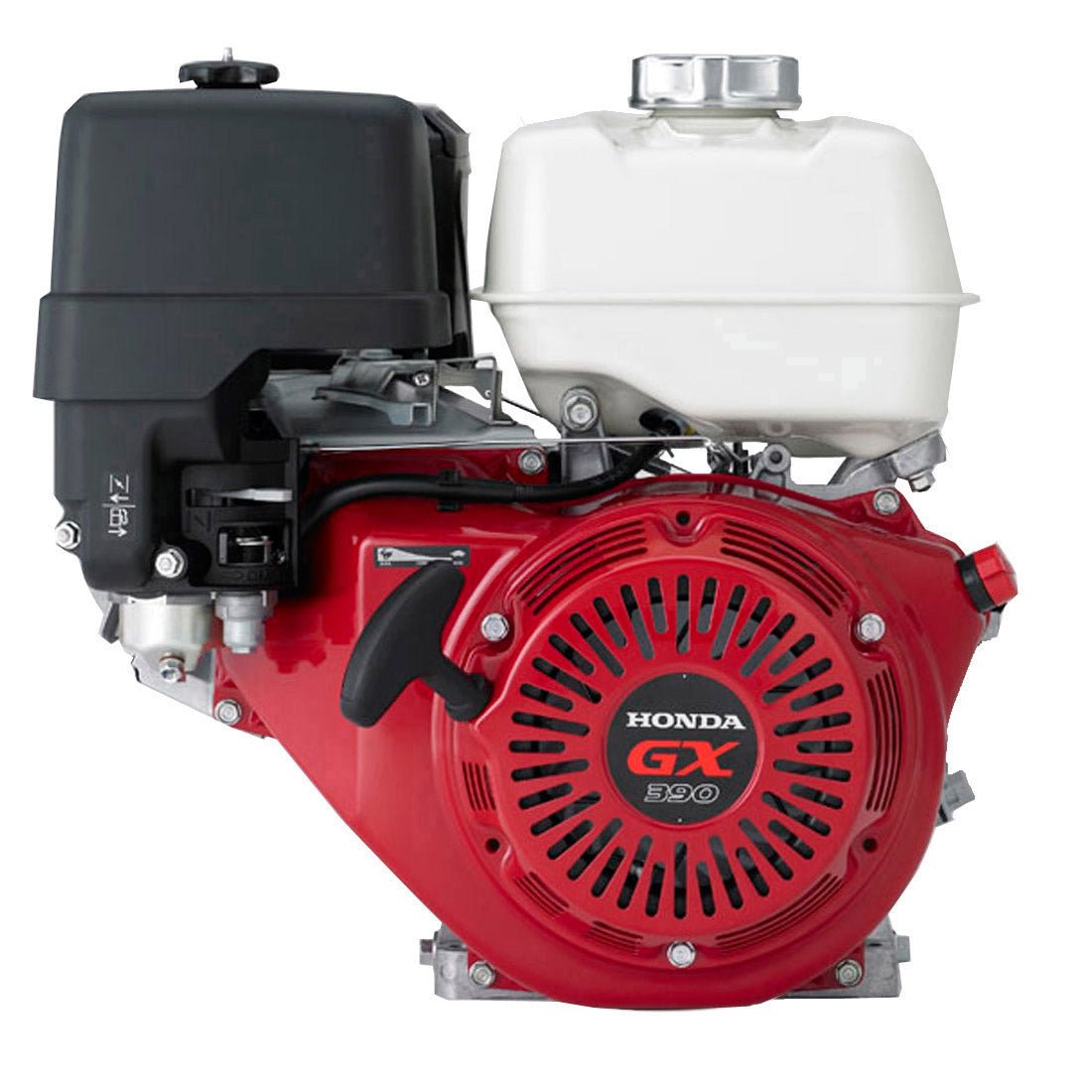

The Honda GX390 is the largest single-cylinder engine in Honda's GX range and is used across pressure washers, construction and industrial equipment, tillers, generators, commercial lawn and garden equipment, forestry equipment, agricultural equipment and water pumps. This listing is for the electric-start QNR 1 inch keyway version with 18 amp charging.

Key specifications

Brand Honda
Engine model / series Honda GX390 13.0HP Petrol Engine (GX Series)
Source option label Electric Start / QNR – 1 Inch Keyway -18 amp Charging
Source SKU / model code GX390-QNR2
Engine style / orientation Stationary GX Series engine with horizontal shaft options
Cylinders Single-cylinder
Bore / stroke 88 x 64 mm
Engine displacement / cc 389 cc
Horsepower 13.0 hp
Fuel type Unleaded
Fuel tank 6.5 L
Fuel consumption 3.7 L/hour
Oil capacity 1.1 L
Oil Alert System Yes
Starter type Electric Start
Shaft size 25.4 mm (1") diameter
Shaft diameter 25.4 mm (1")
Shaft length 88.5 mm
Shaft type / keyway / threaded / taper details QNR – QX keyway shaft, 25.4 mm (1") diameter x 88.5 mm long, with 18 Amp charging system
Charging output 18 Amp charging system
Dimensions 405 x 450 x 443 mm
Warranty Honda 3 Year Warranty

Typical applications / fitment

Typical applications include pressure washers, construction and industrial equipment, tillers, generators, commercial lawn and garden equipment, agricultural equipment and water pumps where the QNR keyway shaft and charging system match the application.

Please confirm your engine model, shaft type, shaft size, shaft length and application before ordering. If you are unsure, contact Hampton Mower Centre with your model/type code and photos.

Additional information

Weight 35 kg
Dimensions 40.5 × 45 × 44.3 cm
