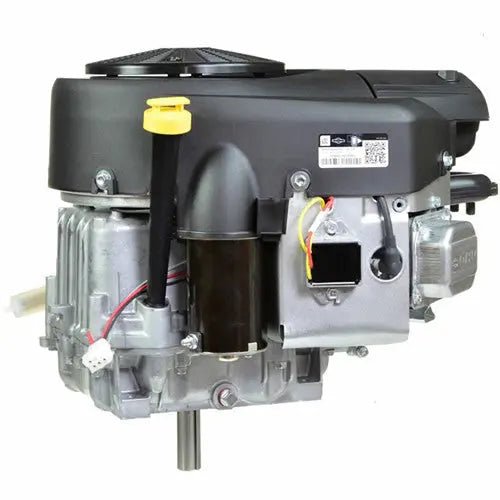

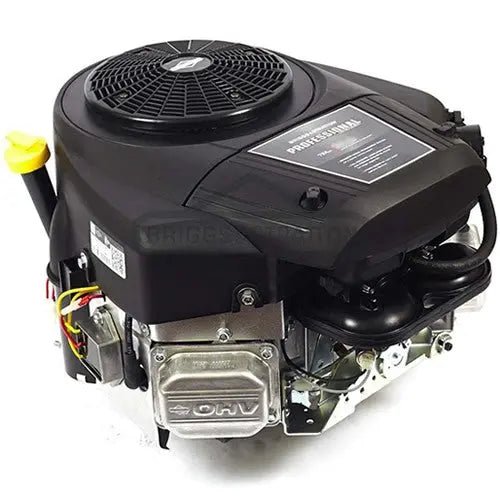

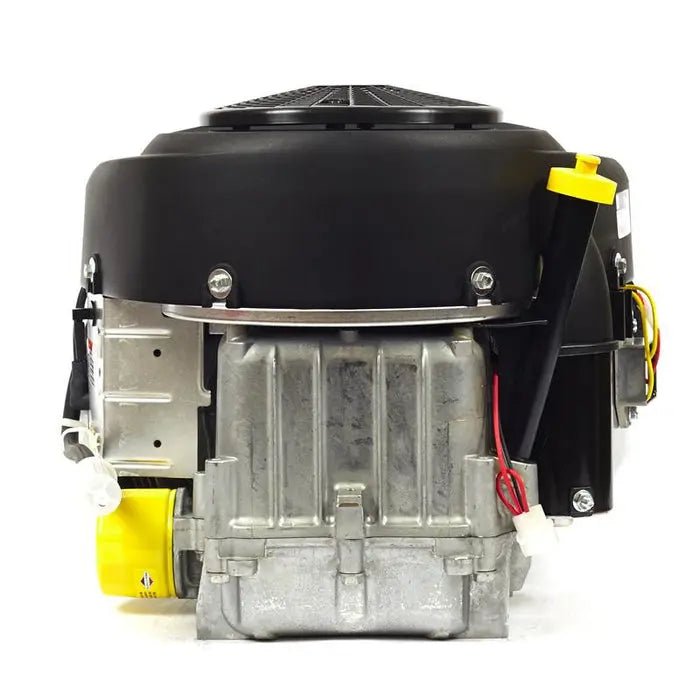

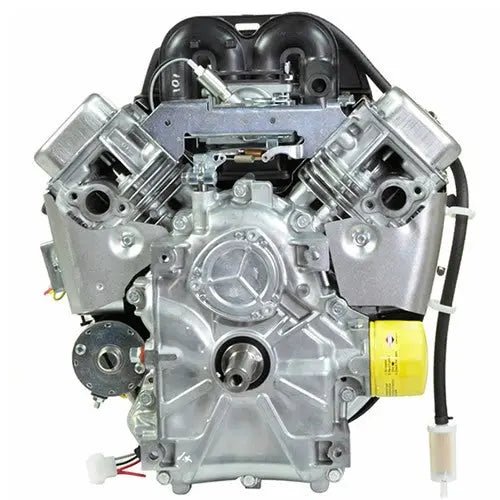

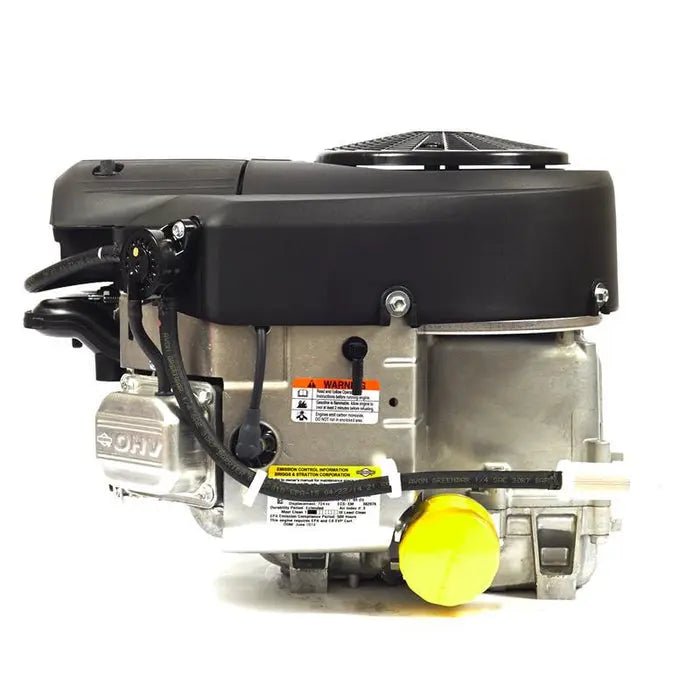

Briggs & Stratton 25HP V-Twin Petrol Engine (Pro Series)

Available on backorder

Check Delivery Cost

Enter your postcode to check delivery options before checkout.

Did you like this product? Add to favorites now and follow the product.

Add to wishlist

Low Prices

Price match guarantee

Expert Product Advice.

Contact Hampton Mower Centre for fitment and parts support.

In-House Experts.

We know our products

Easy Returns.

Quick & Hassle Free

Description

DESCRIPTION

The Briggs & Stratton 25Hp Vertical V-Twin Pro Series engine with electric start delivers top reliability, performance and durability to meet the demands of professionals. The Briggs Pro-Series 25Hp engine features a pressure lubrication system with an automotive full flow style spin on oil filter.?This model engine has Briggs and Stratton’s latest advanced debris management system, which keeps the engine clean by deflecting and ejecting grass and debris for a longer engine life.

Typical Applications :-?This Briggs & Stratton series engine is a ideal replacement engine for most ride on mowers on the market. It is a ideal replacement for all previous Briggs & Stratton V-Twin models around the same H.P

SPECIFICATIONS

Dura-Bore cast iron cylinder sleeve for extended life
Dependable float feed type carburetor with integral fuel pump for remote mount fuel tank
Maintenance-free Magnetron electronic ignition for quick, dependable starts
Mechanical compression release for smooth, quick starting
Advanced debris management system with a dual seal, cartridge-style air filter provides maximum protection and extends engine life
Full pressure lubrication with spin-on oil filter assures controlled lubrication for extended component life
Keyway Shaft – 1 Inch Diameter

Note :- Muffler Not Supplied with engine – Can be supplied at additional cost?

SPECIFICATIONS

Engine Series	Briggs & Stratton Pro Series
Engine Style	Vertical
Cylinders	2
Engine Type	4 Cycle OHV
Cooling System	Air
Dry Weight	37.6 kgs
Engine CC	724cc
Engine HP	25hp
Cylinder Bore Type	Cast Iron
Bore	79.2mm
Stroke	73.4mm
Starting System	12 volt key start
Ignition System	Electronic Spark
Oil Filter	Yes
Oil capacity	64?oz
Muffler	Not Included
Air Cleaner	Multi-Stage
Fuel Tank	Not Included
Crankshaft Rotation	Counterclockwise
Shaft Size	1 x 3-5/32 Inch
Crankshaft Type	Straight Keyway
Crankshaft Diameter	1 Inch
Crankshaft Length	3-5/32″
Crankshaft End Tapped Size	7/16-20
Crankshaft Keyway Width	1/4 Inch
Warranty	2 Years
Dimensions	18.81?(in) x 17.9?(in) x 14.96?(in) (LxWxH)
