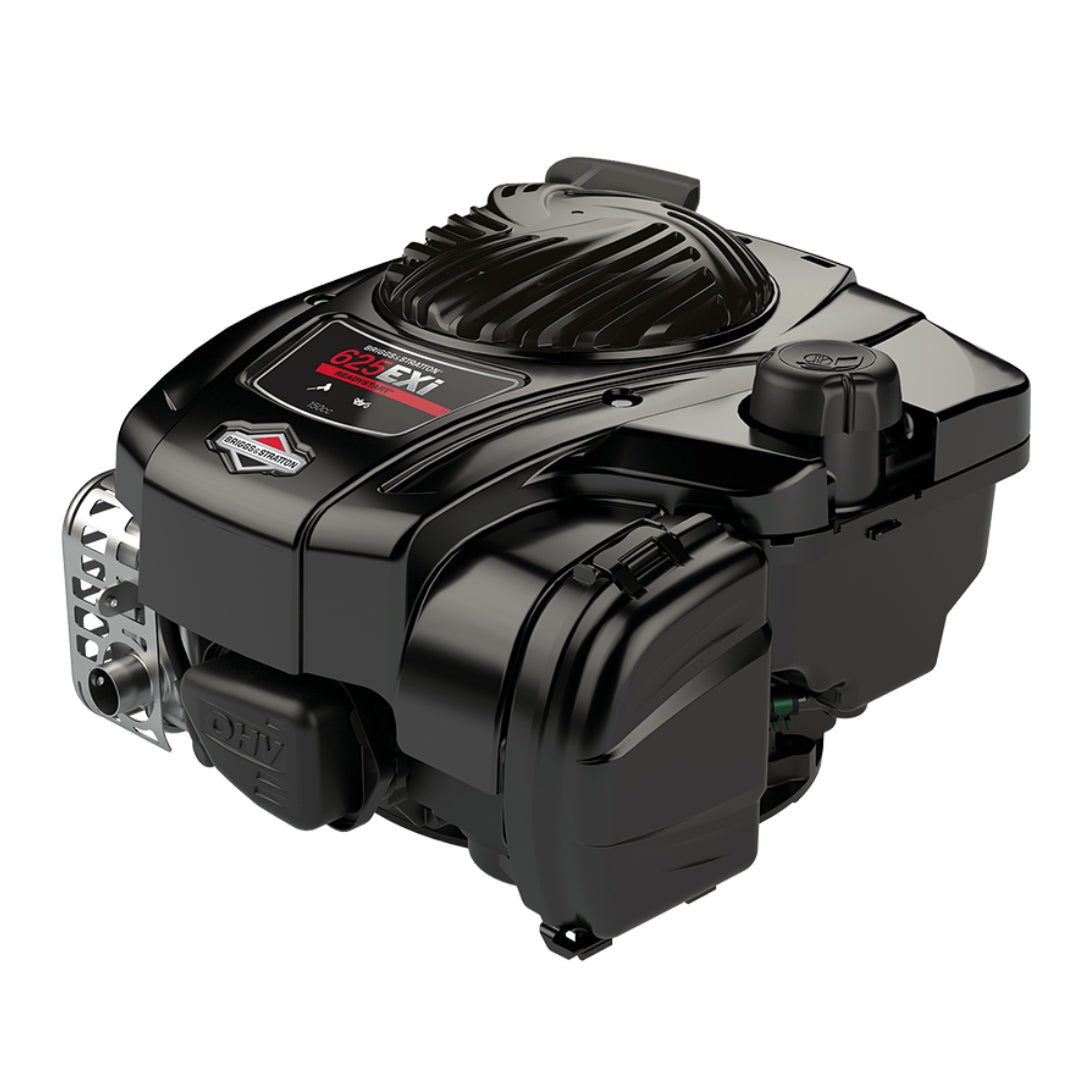

Briggs & Stratton 4.0hp (625EXi Series) Lawnmower Engine – 7/8 Diameter – 70ML Long

$370.00

Briggs & Stratton Briggs & Stratton 625EXi Series 4.0hp 150 cc engine, SKU 093J02-0009, with 7/8 Diameter; 70mm Long; Straight Keyway; 7/8 Dia x 50mm Long or 7/8 Dia x 70mm Long. Please confirm shaft size and application before ordering.

In Stock

Check Delivery Cost

Enter your postcode to check delivery options before checkout.

Did you like this product? Add to favorites now and follow the product.

Add to wishlist
Low Prices

Price match guarantee

Expert Product Advice.

Contact Hampton Mower Centre for fitment and parts support.

In-House Experts.

We know our products

Easy Returns.

Quick & Hassle Free

Category:

Description

Product overview

Cutting your lawn has never been easier. The 625EXi Series™ engine combines powerful performance with new levels of easy operation. Easy to use, easy to maintain, easy to start – the EX Series delivers a new engine experience for the most demanding job. This Hampton Mower Centre listing is for the exact option/version: 7/8 Diameter – 70mm Long, SKU/model code 093J02-0009.

Key specifications

SKU / model code093J02-0009
BrandBriggs & Stratton
Engine seriesBriggs & Stratton 625EXi Series
Horsepower4.0hp
Engine cc150 cc
Engine style / orientationVertical
Cylinders1
Engine type4 Cycle OHV
Cooling systemAir
BoreType Aluminum Bore 65.6 mm
Stroke44.45 mm
Starting systemRecoil Only
Ignition systemElectronic Spark
Oil filterNo
Oil capacity0.5 ltrs Muffler Yes Air Cleaner Dry Paper
Muffler7/8' Diameter / 70mm Long Keyway
Air cleanerCover Overhead Valve (OHV) Engine Design Lo-Tone
Fuel tank0.8ltr
Shaft size7/8 Dia x 50mm Long or 7/8 Dia x 70mm Long
Shaft diameter7/8 Diameter
Shaft length70mm Long
Shaft type / keyway detailStraight Keyway
Crankshaft rotationCounter Clockwise
Crankshaft end tapped sizeVaries
Crankshaft keyway width3/16 Warranty 2 Years
Dimensions347 x 310 x 244 mm (LxWxH)
Dry weight8.2kg
WarrantyAustralia Wide

Typical applications / fitment

This Briggs & Stratton 625EXi Series engine is a ideal replacement engine for Rover, Masport, Supaswift & Victa lawn mowers. It is the direct replacement for all previous Briggs & Stratton 'Quattro' and 'Quantum' Series models.

Please confirm your engine model, shaft type, shaft size, shaft length and application before ordering. If you are unsure, contact Hampton Mower Centre with your model/type code and photos.

Need workshop support or a repair?

For repairs and servicing, Hampton Mowerpower is the physical workshop at 87 Ludstone Street, Hampton VIC 3188. Commercial equipment repairs are normally targeted at approximately 1-2 business days and domestic repairs approximately 3-4 business days, subject to diagnosis, approval, parts availability, repair complexity and workshop conditions.

Request a repair | View repair services | Call (03) 9598 6741

Not sure if the machine is worth repairing or whether an engine can be replaced? Ask first with the equipment type, brand/model and symptoms.

Need a repair before replacing the machine?

Commercial Repair Priority — Typical Turnaround 1–2 Business Days. Domestic Repairs — Typical Turnaround 3–4 Business Days. Typical turnaround applies once the machine has been assessed and the repair is approved. Special-order or backordered parts, major engine work, unusual faults or additional diagnosis may take longer.

Repair labour: Lawn Mower $89 + parts; Chainsaw $89 + parts; Line Trimmer / Brushcutter $89 + parts. Minor repairs $22 / $44 / $55 + parts depending on the work required. Larger / commercial equipment including Demo Saw, Jackhammer, Generator, Ride-On Mower, Wacker / Compaction Equipment and Shredder: $155 + parts.

3-Month Domestic Repair & Service Warranty. This warranty relates to the domestic repair/service work performed.

Book a repair | View repair pricing | Call (03) 9598 6741 | Get directions

Additional information

Weight8.2 kg
Dimensions34.7 × 31 × 24.4 cm
