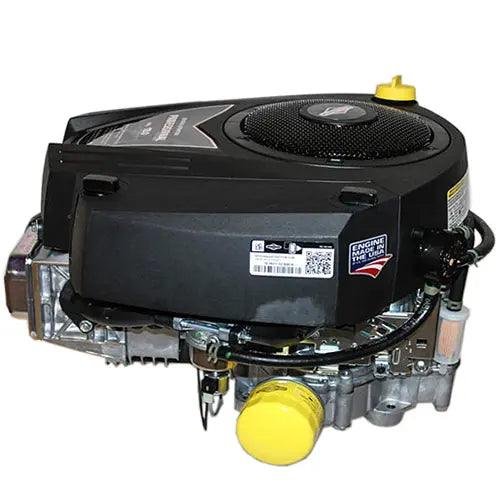

Briggs & Stratton 19HP Lawnmower Engine (Pro Series)
Original price was: $3,064.60.$1,965.00Current price is: $1,965.00.
Check Delivery Cost
Did you like this product? Add to favorites now and follow the product.
Description
Description
DESCRIPTION
The Briggs & Stratton Pro Series 19Hp Vertical OHV engine with electric start delivers top reliability, performance and durability to meet the demands of professionals. This Briggs & Stratton series engine is a ideal replacement engine for most ride on mowers on the market.The Briggs Pro-Series 19Hp engine features a pressure lubrication system with an automotive full flow style spin on oil filter that cleans contaminants from the oil. This model engine has Briggs and Strartton’s latest AVS antivibration system which elimates side to side motion of a traditional counter and rotating balance system.
Typical Applications :-?This Briggs & Stratton series engine is a ideal replacement engine for most ride on mowers on the market. It is a ideal replacement for all previous Briggs & Stratton 14 – 21Hp models.
KEY FEATURES
- Automotive Style Dipstick
- Briggs Model 33S877
- Electric Start?

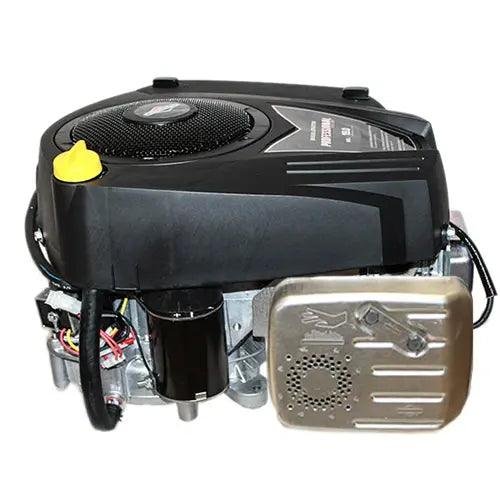

- Super Quiet Muffler fitted as standard
- Dura-Bore cast iron cylinder sleeve
- Over Head Valve Engine (OHV)
- Full-Pressure Lubrication w/ Spin-On Oil Filter
- Advanced Debris Management System
- Float-Feed Carburetor & Mechanical Governor
- Electronic Ignition

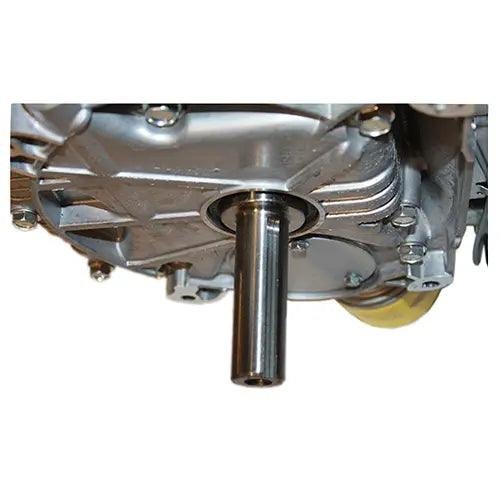

- 1 inch Diameter / 3.5/32′ Long Keyway Shaft
- Vertical Shaft
- 19 (in) x 16.5 (in) x 13 (in) (LxWxH)
- 2 Year Warranty – Australia Wide
SPECIFICATIONS
Engine Series | Briggs & Stratton Pro Series |
Engine Style | Vertical |
Cylinders | 1 |
Engine Type | 4 Cycle OHV |
Cooling System | Air |
Charging Circuit | 9 Amps |
Engine CC | 540cc |
Engine HP | 19hp |
Cylinder Bore Type | Cast Iron |
Bore | 3.70 inches |
Stroke | 3.06 inches |
Starting System | 12 volt key start |
Ignition System | Electronic Spark |
Oil Filter | Yes |
Oil capacity | 48 oz |
Muffler | Included |
Air Cleaner | Dual Element |
Fuel Tank | Not Included |
Crankshaft Rotation | Counterclockwise |
Shaft Size | 1 x 3-5/32 Inch |
Crankshaft Type | Straight Keyway |
Crankshaft Diameter | 1 Inch |
Crankshaft Length | 3-5/32″ |
Crankshaft End Tapped Size | 7/16-20 |
Crankshaft Keyway Width | 1/4 Inch |
Warranty | 2 Years |
Dimensions | 473 (mm) x 438 (mm) x 330 (mm) (LxWxH) |
