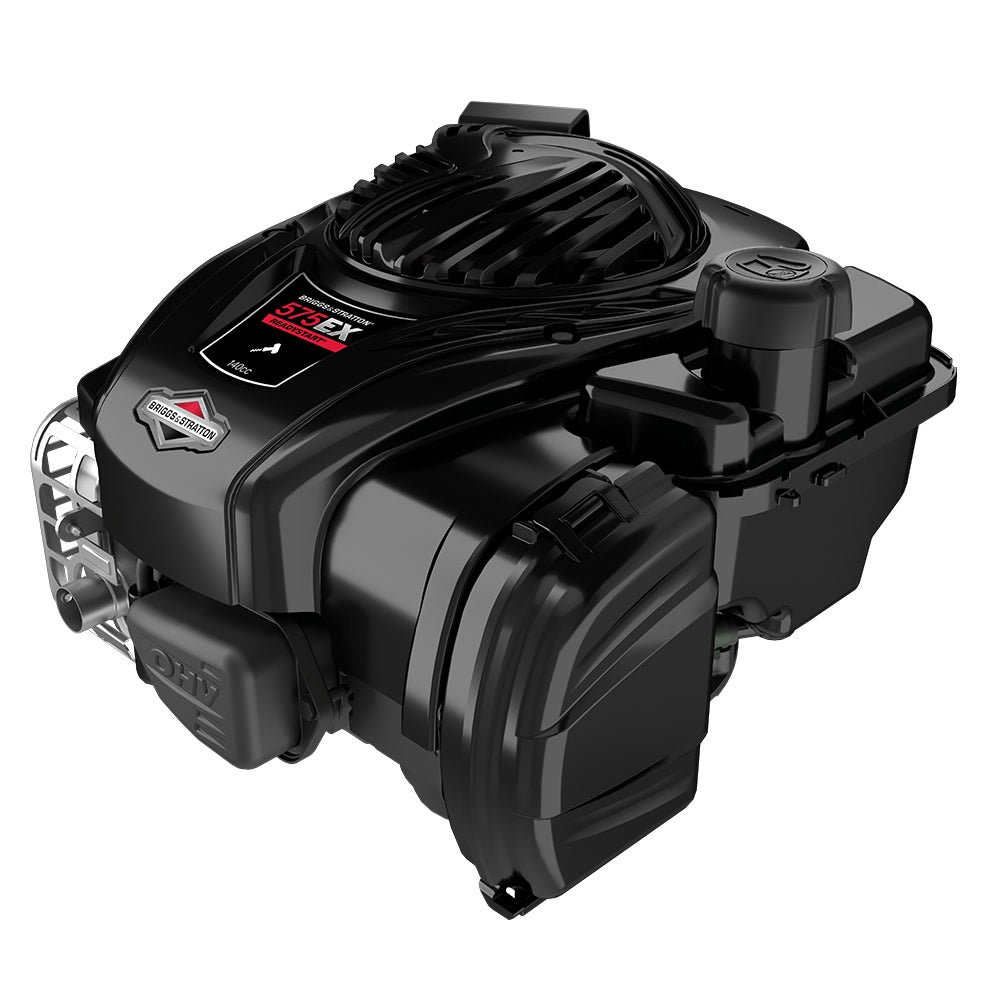

Briggs & Stratton 3.75hp (575EX Series) Lawnmower Engine – 7/8 Diameter – 50ML Long
$260.00
Briggs & Stratton Briggs & Stratton EX Series 3.75hp 140cc engine, SKU 09P902-0012, with 7/8 Diameter; 50mm Long; Straight Keyway; 7/8 Dia x 70mm Long or 7/8 Dia x 50mm Long. Please confirm shaft size and application before ordering.
Check Delivery Cost
Did you like this product? Add to favorites now and follow the product.
Description
Product overview
Performance and value in one unbeatable package. You’ll love the smooth handling of the lightweight, yet powerful 575ex Series™ lawn mower engine.With a best-in-class torque-to-weight ratio, reduced vibration and quieter operation, you can give your lawn a class-A cut with ease. 575ex push mower engines come standard with Super Lo-Tone™ muffler and hassle-free ReadyStart® starting system. This Hampton Mower Centre listing is for the exact option/version: 7/8 Diameter – 50mm Long, SKU/model code 09P902-0012.
Key specifications
| SKU / model code | 09P902-0012 |
|---|---|
| Brand | Briggs & Stratton |
| Engine series | Briggs & Stratton EX Series |
| Horsepower | 3.75hp |
| Engine cc | 140cc |
| Engine style / orientation | Vertical |
| Cylinders | 1 |
| Engine type | 4 Cycle OHV |
| Cooling system | Air |
| Bore | Type Aluminium Bore 2.50 inches |
| Stroke | 1.75 inches Starting System Recoil Only Ignition System Electronic Spark |
| Starting system | . This genuine 140cc Briggs and Stratton single |
| Ignition system | Over Head Valve Engine (OHV) Super Lo tone Engine Muffler Fixed speed control Compact & Lightweight 140 cc |
| Oil filter | No |
| Oil capacity | 16 oz Muffler Included Air Cleaner Foam Fuel Tank Included |
| Muffler | and hassle-free ReadyStart® |
| Air cleaner | Magnetron Electronic |
| Fuel tank | . *Replacement engines are very specific to your current model number. Please contact us or the manufacturer for the correct replacement for your original engine. |
| Shaft size | 7/8 Dia x 70mm Long or 7/8 Dia x 50mm Long |
| Shaft diameter | 7/8 Diameter |
| Shaft length | 50mm Long |
| Shaft type / keyway detail | Straight Keyway |
| Crankshaft rotation | Counterclockwise |
| Crankshaft end tapped size | 3/8-24 |
| Crankshaft keyway width | 3/16 Inch Warranty 1 Years |
| Dimensions | 13.8 (in) x 12.2 (in) x 9.6 (in) (LxWxH) |
| Dry weight | 17 Lbs |
| Warranty | of 2 years consumer use / 90 days commercial use, Briggs and Stratton provides power that you can trust. This engine includes a |
Typical applications / fitment
This Briggs & Stratton 3.75HP engine is a ideal replacement engine for Rover, Masport, Supaswift and Victa lawn mowers. It is the direct replacement for all previous Briggs & Stratton 'Classic' and 'Sprint' and 450 Series models.
Please confirm your engine model, shaft type, shaft size, shaft length and application before ordering. If you are unsure, contact Hampton Mower Centre with your model/type code and photos.
Need workshop support or a repair?
For repairs and servicing, Hampton Mowerpower is the physical workshop at 87 Ludstone Street, Hampton VIC 3188. Commercial equipment repairs are normally targeted at approximately 1-2 business days and domestic repairs approximately 3-4 business days, subject to diagnosis, approval, parts availability, repair complexity and workshop conditions.
Request a repair | View repair services | Call (03) 9598 6741
Not sure if the machine is worth repairing or whether an engine can be replaced? Ask first with the equipment type, brand/model and symptoms.
Need a repair before replacing the machine?
Commercial Repair Priority — Typical Turnaround 1–2 Business Days. Domestic Repairs — Typical Turnaround 3–4 Business Days. Typical turnaround applies once the machine has been assessed and the repair is approved. Special-order or backordered parts, major engine work, unusual faults or additional diagnosis may take longer.
Repair labour: Lawn Mower $89 + parts; Chainsaw $89 + parts; Line Trimmer / Brushcutter $89 + parts. Minor repairs $22 / $44 / $55 + parts depending on the work required. Larger / commercial equipment including Demo Saw, Jackhammer, Generator, Ride-On Mower, Wacker / Compaction Equipment and Shredder: $155 + parts.
3-Month Domestic Repair & Service Warranty. This warranty relates to the domestic repair/service work performed.
Book a repair | View repair pricing | Call (03) 9598 6741 | Get directions
Additional information
| Weight | 7.7 kg |
|---|---|
| Dimensions | 60 × 45 × 45 cm |
