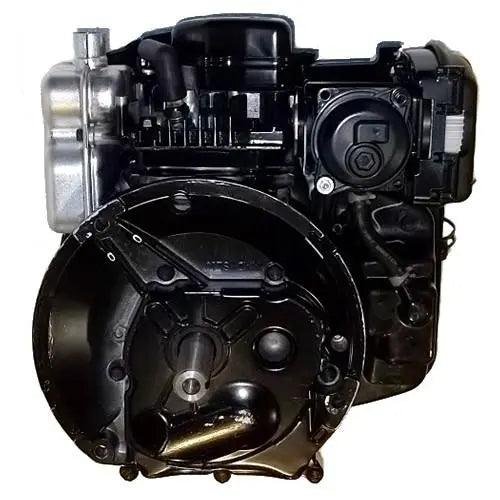

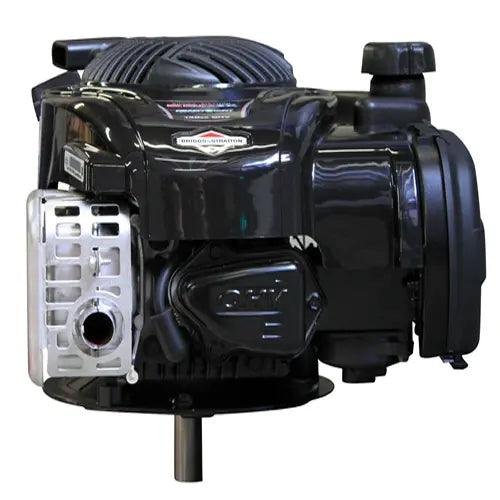

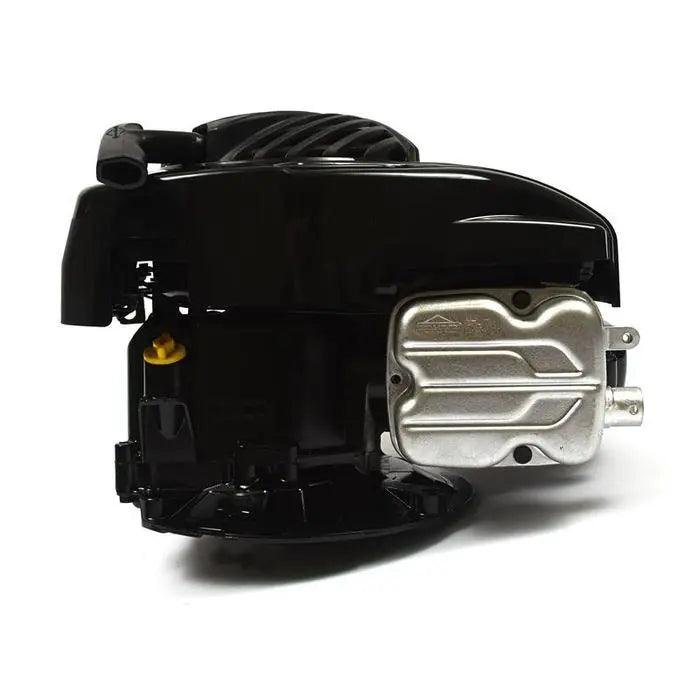

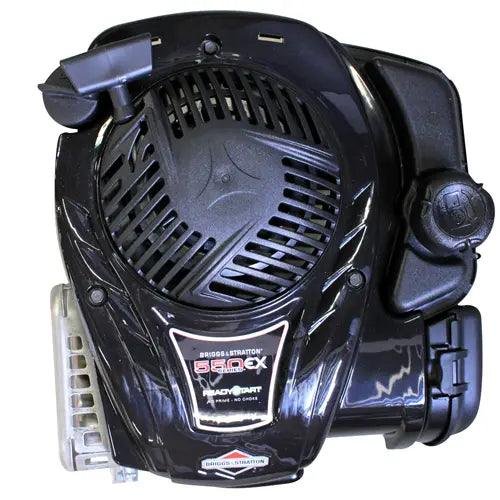

Briggs & Stratton 3.75hp (550EX Series) Lawnmower Engine

Original price was: $419.00.Current price is: $272.00.

Check Delivery Cost

Enter your postcode to check delivery options before checkout.

Did you like this product? Add to favorites now and follow the product.

Add to wishlist
Need product advice?

Call Hampton Mower Centre on (03) 9598 6741

Low Prices

Price match guarantee

Expert Product Advice.

Contact Hampton Mower Centre for fitment and parts support.

In-House Experts.

We know our products

Easy Returns.

Quick & Hassle Free

Categories: ,
Tag:

Description

Description

DESCRIPTION

Performance and value in one unbeatable package. You?ll love the smooth handling of the lightweight, yet powerful 550ex Series? lawn mower engine.With a best-in-class torque-to-weight ratio, reduced vibration and quieter operation, you can give your lawn a class-A cut with ease. 550ex push mower engines come standard with Super Lo-Tone? muffler and hassle-free ReadyStart? starting system.

?Typical Applications :- This Briggs & Stratton 3.75HP engine is a ideal replacement engine for Rover, Masport, Supaswift and Victa lawn mowers. It is the direct replacement for all previous Briggs & Stratton ‘Classic’ and ‘Sprint’ and 450 Series models.

KEY FEATURES

  • DuraLube Splash Lubrication
  • Briggs Model?09P702
  • Engineering for comfort & maneuverability
  • Dirt & Debris protection w/ tool less air cleaner
  • Magnetron Electronic Ignition System
  • Over Head Valve Engine (OHV)
  • Super Lo tone Engine Muffler
  • Fixed speed control
  • Compact & Lightweight
  • 140 cc
  • Shaft Options of 70ml long or 50 ml long
  • 7/8 Inch Diameter Vertical Shaft
  • 13.8?(in) x 12.2?(in) x 9.6?(in) (LxWxH)
  • 1?Year Warranty – Australia Wide

    SPECIFICATIONS

    Engine Series

    Briggs & Stratton EX?Series

    Engine Style

    Vertical

    Cylinders

    1

    Engine Type

    4 Cycle OHV

    Cooling System

    Air

    Dry Weight

    17 Lbs

    Engine CC

    140cc

    Engine HP

    3.75hp

    Cylinder Bore Type

    Aluminium

    Bore

    2.50?inches

    Stroke

    1.75?inches

    Starting System

    Recoil Only

    Ignition System

    Electronic Spark

    Oil Filter

    No

    Oil capacity

    16?oz

    Muffler

    Included

    Air Cleaner

    Dry Paper

    Fuel Tank

    Included

    Crankshaft Rotation

    Counterclockwise

    Shaft Size

    7/8 x?70ml or 7/8 x 50ml

    Crankshaft Type

    Straight Keyway

    Crankshaft Diameter

    7/8

    Crankshaft Length

    		70ml or 50ml

    Crankshaft End Tapped Size

    		3/8-24

    Crankshaft Keyway Width

    3/16 Inch

    Warranty

    1 Years

    Dimensions

    13.8 (in) x 12.2?(in) x 9.6?(in) (LxWxH)

    Need workshop support or a repair?

    For repairs and servicing, Hampton Mowerpower is the physical workshop at 87 Ludstone Street, Hampton VIC 3188. Commercial equipment repairs are normally targeted at approximately 1-2 business days and domestic repairs approximately 3-4 business days, subject to diagnosis, approval, parts availability, repair complexity and workshop conditions.

    Request a repair | View repair services | Call (03) 9598 6741

    Not sure if the machine is worth repairing or whether an engine can be replaced? Ask first with the equipment type, brand/model and symptoms.

    Need a repair before replacing the machine?

    Commercial Repair Priority — Typical Turnaround 1–2 Business Days. Domestic Repairs — Typical Turnaround 3–4 Business Days. Typical turnaround applies once the machine has been assessed and the repair is approved. Special-order or backordered parts, major engine work, unusual faults or additional diagnosis may take longer.

    Repair labour: Lawn Mower $89 + parts; Chainsaw $89 + parts; Line Trimmer / Brushcutter $89 + parts. Minor repairs $22 / $44 / $55 + parts depending on the work required. Larger / commercial equipment including Demo Saw, Jackhammer, Generator, Ride-On Mower, Wacker / Compaction Equipment and Shredder: $155 + parts.

    3-Month Domestic Repair & Service Warranty. This warranty relates to the domestic repair/service work performed.

    Book a repair | View repair pricing | Call (03) 9598 6741 | Get directions

    Additional information

    Weight15 kg
    Dimensions70 × 50 × 45 cm
