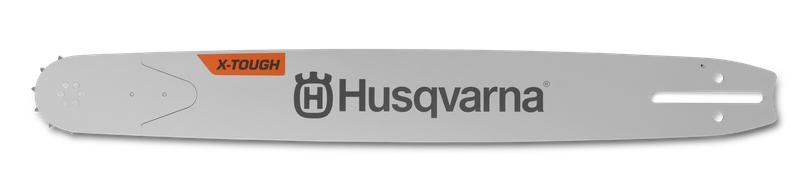

X-Tough Guide Bar 3/8″ Bar Mount

Description

Overview

Husqvarna X-TOUGH RSN (Replaceable Sprocket Nose) bars are our toughest sprocket nose bars. Thanks to the design, characterized by a solid steel body with increased rail hardness and the optimized oil hole, the maintenance effort is reduced, and high productivity can be achieved. The load is transferred to the high-quality roller bearing with supporting shields, resulting in less friction and prolonged lifetime. The robust and patented RSN shape and the triple-rivet mount offers high durability and makes the bar less sensitive to abuse. Replacement tip is available as a spare part.

Specifications

Specifications Compare specifications and features with similar Husqvarna products. Compare Guide Bar 20" 3/8" .050" 72DL | Large Bar Mount (D009) 596 68 74‑72 Guide Bar 16" 3/8" .058" 60DL | Small Bar Mount (K095) 596 68 82‑60 Guide Bar 32" 3/8" .058" 105DL | Large Bar Mount (D009) 596 68 91‑05 Guide Bar 36" 3/8" .058" 115DL | Large Bar Mount (D009) 596 68 91‑15 Guide Bar 32" 3/8" .063" 105DL | Large Bar Mount (D009) 596 68 96‑05 Product data Bar length (inch) 20 in 16 in 32 in 36 in 32 in Bar length 50 cm 40 cm 80 cm 90 cm 80 cm Pitch 3/8" 3/8" 3/8" 3/8" 3/8" Gauge 1.3 mm 1.5 mm 1.5 mm 1.5 mm 1.6 mm Bar type Solid Solid Solid Solid Solid Nose type Replaceable sprocket nose Replaceable sprocket nose Replaceable sprocket nose Replaceable sprocket nose Replaceable sprocket nose Bar mount type HLM HSM HLM HLM HLM GTIN-13/EAN – – 7333377056640 – – Show more
