Description

Product Description

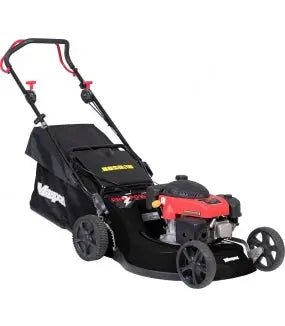

This wide cut 21″ premium alloy mower features a variable speed self propelled drive system and a powerful AL-KO* 196cc Series NINE I/C professional engine. Additional features include Rear Discharge Chute, Mulch option and Wash Port.

Cut, Catch, Mulch & Rear Discharge
Powered by AL-KO Series NINE IC 196cc OHV 4 stroke engine*
Auto Choke engine starts easily whether cold or hot and is ready to use immediately
540mm (21″) heavy duty aluminium non rust chassis
Variable Speed Self Propelled – Ground speed 3.45km/h – 6.63km/h
Masport Quadcut? 4 Blade Disc System for superior catching due to increased airflow
Front 200mm (8″) and Rear 220mm (9″) deep tread adjustable dual bearing wheels
Comfortable upturned upper handle with soft grip
Reinforced lower handle for added strength
Camlocks for quick release handle fold down
Fabric Catcher with Cover
Rear Discharge Chute designed for safe discharge of grass when mowing without a catcher
Zone start for comfortable starting position
Washport to facilitate cleaning
*AL-KO specified engine as used on AL-KO mowers in Europe

Mulching Capable
Variable Speed Self Propelled
Adjustable Wheel Bearings
Widecut
Zone Start
Deck Washport
Rear Discharge Chute
Specifications
Engine Make
AL-KO*
Engine Model
Series NINE IC
Engine Type
4 Stroke
Engine Capacity
196cc
Power Rating (Torque)
12 Nm/2500rpm
Starting System
Auto Choke
Cutting Width
540mm (21″)
Cutting Height Range
17mm – 63mm
Cutting Methods
Cut, Catch, Mulch, Rear Discharge
Number of Blades
4
Cutting System
Masport Quadcut? Blade Disc System
Cutting Height Steps
11
Cutting Height Adjustment
Single Point
Drive System
Variable Speed Self Propelled
Ground Speed
3.45km/h – 6.63km/h
Chassis Material
Aluminium
Upper Handlebar Type
Upturned with soft grip
Handlebar Retainer
Camlocks
Lower Handlebar Type
Reinforced
Catcher Type
Fabric catcher with cover
Catcher Volume
67L
Wheel Bearing Type
Adjustable Dual Ball
Wheel Type & Size
MSV? Mag Front 200mm (8″) and Rear 220mm (9″) deep tread
Weight
45.6kg
Product Dimensions (W x H x L)
580mm x 1070mm x 1660mm
Engine Disclaimer
*AL-KO specified engine as used on AL-KO mowers in Europe
