Description

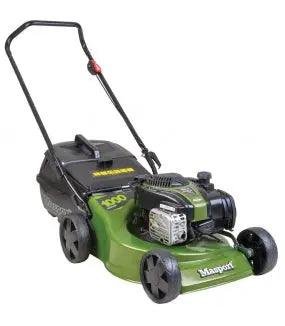

Powered by a Briggs & Stratton 140cc engine, with a sturdy steel chassis. This is a good quality cut and catch mower for small to medium sized lawns.

Cut & Catch
Powered by Briggs & Stratton 140cc OHV Series 500E RapidStart? 4 stroke engine
460mm (18″) steel chassis
Masport 2 Blade Disc System
Mulch Ready – Mulch Plug available as optional extra
Front 175mm (7″) and Rear 200mm (8″) adjustable mono bearing wheels
Comfortable upturned upper handle with PVC grip
Two piece lower handle for easy catcher access
Camlocks for quick release handle fold down
HDPE?Plastic Catcher

Adjustable Wheel Bearings

HDPE Plastic Catcher

Specifications
Engine Make
Briggs & Stratton
Engine Model
OHV Series 500E
Engine Type
4 Stroke
Engine Capacity
140cc
Power Rating (Torque)
5ft/lb or 6.8Nm
Starting System
RapidStart?
Cutting Width
460mm (18″)
Cutting Height Range
12mm – 80mm
Cutting Methods
Cut, Catch
Number of Blades
2
Cutting System
Masport 2 Blade Disc System
Cutting Height Steps
10
Cutting Height Adjustment
Single Point
Drive System
Push
Chassis Material
Steel
Upper Handlebar Type
Upturned with PVC grip
Handlebar Retainer
Camlocks
Lower Handlebar Type
Reinforced
Catcher Type
HDPE Plastic
Catcher Volume
46.5L
Wheel Bearing Type
Adjustable Mono Ball
Wheel Type & Size
MSV? Mag Front 200mm (8″) and Rear 200mm (8″)
Weight
25.6kg
Product Dimensions (W x H x L)
530mm x 985mm x 1370mm
