P 525DX

Description

Overview

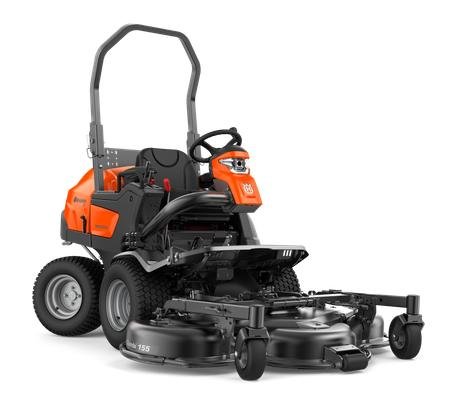

High-capacity diesel-powered front mower offering unbeatable manoeuvrability and productivity in complex and narrow environments as well as in larger-sized areas. The commercial graded transmission gives uncompromised traction and slope stability. The machine's compact size and high transport speed makes it suitable both for stationary and mobile application for municipalities, contractors, housing agencies etc. Thanks to the front-mounted cutting deck the operator has perfect overview of the working area. This means optimised trimming ability as well as accessibility under benches, bushes etc. Long-life components for solid durability and less downtime. Attachments such as utility bucket and broom give increased productivity all-year round. The P525DX can be fitted with either a 132 or 155 cm Combi cutting deck. Snow thrower, folding plough & snow blade attachments not available in AU/NZ markets. *Price excludes deck. Decks supplied at additional cost.

Key Features

• Patented articulated steering: Min. clearance circle by articulated steering
• Trimming ability: Front-mounted cutting deck for precise trimming
• Mowing accessibility: Unbeatable mowing accessibility
• Compact design: Compact design for easy operation in narrow spaces
• Commercial grade transmission: Commercial graded transmission
• All-Wheel Drive (AWD): Excellent hillside driving performance
• Versatile usage: Accessories for versatile year/round usage
• All-Wheel-Drive (AWD): All-Wheel-Drive (AWD) ensures traction on uneven, wet and slippery areas and slopes.
• Shaft PTO: Shaft PTO for maximum efficiency
• Quick coupling: Easy tool exchange by unique quick coupling
• Kubota diesel engine: 3-cylinder Kubota diesel engine with full pressure lubrication.
• Ergonomic operation: Ergonomic operator's interface
• Hydraulic power steering: Hydraulic power steering for increased comfort
• Easy-access controls: Easy-access controls for user comfort
• Tilting hood: The tilting hood and easy-access servicing points make maintenance and servicing easy.
• Greasable mandrels: Greasable mandrels for easy maintenance
• Off-set cutting deck (Combi 155 only): Off-set cutting deck for easy close-up trimming
• Service position: Service position for easy deck maintenance.
• Durable ladder frame: Heavy-duty, durable steel ladder frame
• Cast iron rear wagon: Durable cast iron rear wagon
• 16 inch wheels: Equally sized wheels for a comfortable ride
• HVO100 ready: Hydrogenated Vegetable Oils (HVO) is a 100% synthetic diesel made from renewable materials.
• Ready for Combi deck: Designed to deliver a cutting result in top-class, offering two cutting methods in one deck; mulching or rear discharge (mulch plug removed).

Specifications

Specifications Compare specifications and features with similar Husqvarna products. Compare P 525DX 2021- 967 98 53‑01 Engine Power/fuel type Diesel Net power at preset rpm Energy 1 17.8 kW Net power at preset rpm 3,000 rpm Engine brand Kubota Motor/engine manufacturer Kubota Engine name D1105 Cylinder displacement 1,123 cm³ Cylinders 3 Engine cooling Liquid Engine lubrication type Pressure with Oilfilter Oil filter Yes P 525DX 2021- 967 98 53‑01 Emission Exhaust emissions (CO₂ EU V) 2 1,018 g/kWh P 525DX 2021- 967 98 53‑01 Battery Battery capacity 62 Ah Battery Chemistry Lead-Acid Battery Weight 14 kg Battery brand Exide P 525DX 2021- 967 98 53‑01 Cutting deck Uncut circle 58 cm Cutting width, min 132 cm Cutting width, max 155 cm Cutting height min 30 mm Cutting height max 112 mm Blade engagement Electric clutch P 525DX 2021- 967 98 53‑01 Dimensions Tyre dimensions, front 20×10-10 Tyre dimensions, rear 20×10-10 Wheelbase 106 cm Ground clearance 140 mm Base machine, length 207.8 cm Base machine, width 115.3 cm Base machine, height 133 cm Gross weight towed 3 350 kg Weight (excl. cutting equipment) 684 kg P 525DX 2021- 967 98 53‑01 Drive system PTO (Power Take Off) Shaft drive Transmission type Hydrostatic Transmission manufacturer, rear Kanzaki Drive method Dual pedal-operation Speed forward max 19 km/h Speed reverse max 15 km/h Transmission manufacturer, front Kanzaki Transmission model, front KTM 23LC Transmission model, rear KTM 23SC P 525DX 2021- 967 98 53‑01 Equipment Seat suspension Yes Seat type Full suspension, arm rests Hour meter type Digital Seat material Vinyl Seat back height High Foldable seat Yes Steering wheel type Professional Parking brake, type Disc P 525DX 2021- 967 98 53‑01 Vibration Vibration level steering wheel 1.7 m/s² Vibration level seat 0.7 m/s² P 525DX 2021- 967 98 53‑01 Sound and noise Sound pressure level at operators ear (LpA) 91 dB(A) Sound power level, guaranteed (LWA) 105 dB(A) Sound power level, measured 104 dB(A) Show more

Compatibility / Accessories

Features Patented articulated steering Min. clearance circle by articulated steering View more Trimming ability Front-mounted cutting deck for precise trimming View more Mowing accessibility Unbeatable mowing accessibility View more Compact design Compact design for easy operation in narrow spaces View more Commercial grade transmission Commercial graded transmission View more All-Wheel Drive (AWD) Excellent hillside driving performance View more Versatile usage Accessories for versatile year/round usage View more All-Wheel-Drive (AWD) All-Wheel-Drive (AWD) ensures traction on uneven, wet and slippery areas and slopes. View more Shaft PTO Shaft PTO for maximum efficiency View more Quick coupling Easy tool exchange by unique quick coupling View more Kubota diesel engine 3-cylinder Kubota diesel engine with full pressure lubrication. View more Ergonomic operation Ergonomic operator's interface View more Hydraulic power steering Hydraulic power steering for increased comfort View more Easy-access controls Easy-access controls for user comfort View more Tilting hood The tilting hood and easy-access servicing points make maintenance and servicing easy. View more Greasable mandrels Greasable mandrels for easy maintenance View more Off-set cutting deck (Combi 155 only) Off-set cutting deck for easy close-up trimming View more Service position Service position for easy deck maintenance. View more Durable ladder frame Heavy-duty, durable steel ladder frame View more Cast iron rear wagon Durable cast iron rear wagon View more Heavy-duty deck design View more 16 inch wheels Equally sized wheels for a comfortable ride View more HVO100 ready Hydrogenated Vegetable Oils (HVO) is a 100% synthetic diesel made from renewable materials. View more Ready for Combi deck Designed to deliver a cutting result in top-class, offering two cutting methods in one deck; mulching or rear discharge (mulch plug removed). View more
