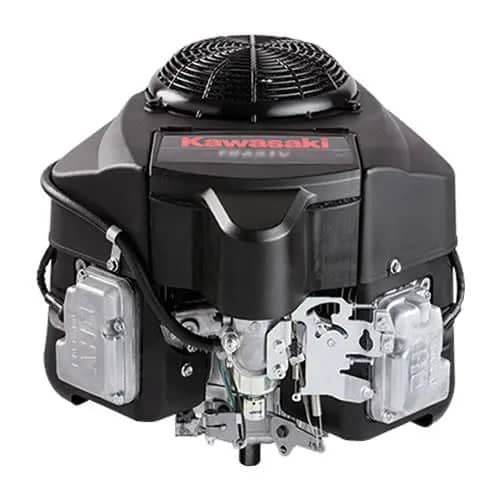

Kawasaki FR691V 23.0HP Petrol Lawnmower Engine

$2,750.00

Check Delivery Cost

Enter your postcode to check delivery options before checkout.

Did you like this product? Add to favorites now and follow the product.

Add to wishlist
Need product advice?

Call Hampton Mower Centre on (03) 9598 6741

Low Prices

Price match guarantee

Expert Product Advice.

Contact Hampton Mower Centre for fitment and parts support.

In-House Experts.

We know our products

Easy Returns.

Quick & Hassle Free

Categories: ,
Tag:

Description

DESCRIPTION

The FR691V engine carries out the tough work in compact spaces.For zero-turn mowers and lawn tractors, this 4-cycle engine with rotating grass screen and dual element air filter provides optimun productivity and maximum payback.

FEATURES

  • Overhead V-valve
  • 90? V-twin
  • High performance pressurized lubrication
  • Electronic spark ignition
  • Automatic compression release
  • Internally vented carburetor with fuel shut-off solenoid
  • Rotating grass screen
  • Single Stage air filter
  • Cast-iron cylinder liners

SPECIFICATIONS

  • Engine Type Forced Air-Cooled V-twin 4-cycle Vertical Shaft OHV Gasoline Engine
  • Number of Cylinders 2
  • Bore x Stroke 3.1 x 3.0 in. (78 x 76mm)
  • Shaft Diameter 1 inch or 1.1/8 inch
  • Displacement 726cm3 (44.3 cu. in.)
  • Compression Ratio 8.2:1
  • Maximum Power 23.0hp (17.2 kW)/ 3600 rpm
  • Maximum Torque 39.9 ft. lbs. (54.1 N?m)/ 2200 rpm
  • Oil Capacity 2.2 U.S. qt. (2.1 liter) w/Filter
  • Dry Weight (without muffler) 91.5 lbs. (40.0kg)
  • Muffler needs to be purchased seperatly

      Need workshop support or a repair?

      For repairs and servicing, Hampton Mowerpower is the physical workshop at 87 Ludstone Street, Hampton VIC 3188. Commercial equipment repairs are normally targeted at approximately 1-2 business days and domestic repairs approximately 3-4 business days, subject to diagnosis, approval, parts availability, repair complexity and workshop conditions.

      Request a repair | View repair services | Call (03) 9598 6741

      Not sure if the machine is worth repairing or whether an engine can be replaced? Ask first with the equipment type, brand/model and symptoms.

      Need a repair before replacing the machine?

      Commercial Repair Priority — Typical Turnaround 1–2 Business Days. Domestic Repairs — Typical Turnaround 3–4 Business Days. Typical turnaround applies once the machine has been assessed and the repair is approved. Special-order or backordered parts, major engine work, unusual faults or additional diagnosis may take longer.

      Repair labour: Lawn Mower $89 + parts; Chainsaw $89 + parts; Line Trimmer / Brushcutter $89 + parts. Minor repairs $22 / $44 / $55 + parts depending on the work required. Larger / commercial equipment including Demo Saw, Jackhammer, Generator, Ride-On Mower, Wacker / Compaction Equipment and Shredder: $155 + parts.

      3-Month Domestic Repair & Service Warranty. This warranty relates to the domestic repair/service work performed.

      Book a repair | View repair pricing | Call (03) 9598 6741 | Get directions

      Additional information

      Weight15 kg
      Dimensions70 × 50 × 45 cm
