Description

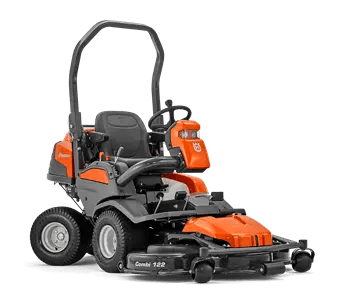

Compact and efficient All-Wheel-Drive front mower for year-round maintenance in complex and narrow areas. Suitable for sport clubs and hotels as well as housing agencies and contractors who want a versatile, compact front mower that is highly manoeuvrable. Thanks to the front-mounted cutting deck the operator has a perfect overview of the working area. This means optimised trimming ability as well as accessibility under benches, bushes etc. Increased durability through long-life components. Attachments such as flail mower and broom give increased productivity all-year round. Price includes Combi deck 122cm. Combi deck 112cm also available via special order only.

  • Motor/engine manufacturer
    Kawasaki
  • Power output
    18.64 hp
  • Cutting width, min-max
    112-122 cm
  • Speed forward max
    13 km/h

FEATURES

Want to take a closer look? Learn more about the product in depth by exploring its design and features.

P 520D

Patented articulated steering

Our patented articulated steering increases driving pleasure by improving manoeuvrability.
P524 EFI Frontmower

Trimming ability

The front-mounted cutting deck gives an excellent overview of the working area, enabling precise, close-up trimming.

Mowing accessibility

The low profile front-mounted cutting deck gives unbeatable accessibility under fences, bushes, park benches etc.
P 520D

Combi deck

The high-performance Combi deck is stamped from a single piece of steel plate. It?s a unique solution that delivers efficient mulching and rear discharge with exceptional results as well as problem-free operation.
Combi 112
  • Commercial grade transmission
  • Hillside driving performance
  • Versatile usage
  • All-Wheel-Drive (AWD)
  • Quick coupling
  • Ergonomic operation
  • Hydraulic power steering
  • Easy-access controls
  • Tilting hood
  • Greasable mandrels
  • Cargo holder
  • Service position
  • Durable ladder frame
  • Cast iron rear wagon
  • 16 inch wheels
P 525D
Commercial grade transmission

High-specified variable piston pumps with separate gear boxes for front and rear axle.

Specifications

Do you need further details to make the right decision? Learn more in the specifications section below.?Locate your dealer

?Engine

Motor/engine manufacturer
Kawasaki
Engine name
FX Series V-Twin
Motor/engine model
FX691V
Cylinder displacement
726 ???
Cylinders
2
Engine cooling
Air
Generator
20 A
#Generator
20 A
Power/fuel type
Gasoline
Fuel tank volume (with reserve)
22 l
Engine lubrication type
Full pressure
Oil type
SAE10W40
Oil filter
Yes
Net power at preset rpm Energy
13.9 kW
Net power at preset rpm
3000 rpm

?Drive system

Transmission type
Hydrostatic AWD
Transmission manufacturer
Kanzaki
Transmission model
KTM 23
Drive method
Pedal-operated
Speed forward max
13 km/h
Speed forward min
0 km/h
Speed reverse max
9 km/h
Speed reverse min
0 km/h

?Cutting deck

Uncut circle
50 cm
Cutting width, min
44 in
Cutting width, min
112 cm
Cutting width, max
48 in
Cutting width, max
122 cm
Cutting deck type
Combi
Cutting deck material
Steel
Deck thickness
4 mm
Cutting methods
Mulching/Rear discharge
Cutting height steps
7
Blade engagement
Electric clutch
Blades
3 pcs
Anti-scalp wheels
3
Powder-coated cutting deck
Yes
Cutting height max
75 mm
Cutting height min
25 mm

?Equipment

Power steering
Yes
All-Wheel Drive (AWD)
Yes
Optional cutting decks
Combi 112, Combi 122
Hydraulic equipment lift
Yes
Pivoting rear axle
Yes
Seat type
Premium
Seat suspension
Yes
Hinged armrests
Standard
Hinged armrests
Yes
Oil cooler
Yes
Service position
Yes
Headlights
Yes
Quick connection
Yes
Hour meter type
Digital
12V outlet
Yes
Transparent tank
Yes
Cup holder
Yes
Cargo holder
Yes

?Dimensions

Wheelbase
100 cm
Ground clearance
105 mm
Base machine, length
205 cm
Base machine, width
98 cm
Weight
427 kg
Base machine, height
115 cm
Weight incl Combi 112
440 kg
Weight incl Combi 122
449 kg
Tyre size, front Diameter
18 in
Wheel/rim size, front Diameter
8 in
Gross weight towed
200 kg[1]

?Sound and Noise

Sound pressure level at operators ear
88 dB(A)
Sound power level, measured
102 dB(A)
Sound power level, guaranteed (LWA)
104 dB(A)
Sound level
104 dB(A)

?Vibration

Vibration level steering wheel
3 m/s?
Vibration level seat
0.7 m/s?
[1] For 2-wheel drive machines, towing of trailer is only allowed in dry conditions and on flat surfaces. Be aware that towing of trailer may shorten the life time of the Rider’s transmission.
