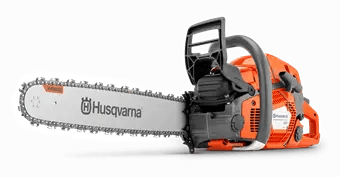

HUSQVARNA 565 AutoTune?

Description

?

?

With outstanding cutting performance, the 565 will help you work faster even with long guide bars. Excellent cooling capacity and state-of-the art filtration means great performance and easy operation even for the toughest jobs. Equipped with AutoTune? and Air Injection? and with low vibration levels, the 565 is a powerful yet ergonomically designed chainsaw for fast, safe work.

• Bar length (inch)
  20″
• Cylinder displacement
  70.6 ???
• Power output
  3.7 kW
• Weight (excl. cutting equipment)
  6.5 kg

FEATURES

Want to take a closer look? Learn more about the product in depth by exploring its design and features.

Better chip ejection avoids clogging

The clutch cover is designed to optimise rapid, safe saw chip ejection. Prevents clogging, even when cutting long fibre wood.

Better manoeuvrability provides full control

The front handle bar position is close to the center of gravity, giving you better cutting control.

Air Injection filters 98% of incoming dust

Gives you full working days with maintained performance and less wear on the engine.

10 times quicker air/fuel mix adjustment

AutoTune? ensures a correctly tuned engine setting and optimised engine performance in all conditions.

• Low vibrations
• Soft cut-out system
• Visible fuel level
• Flip up tank caps
• Felling sight to last a lifetime
• AutoTune
• Magnesium crankcase
• Smart Start?
• X-Torq?

Low vibrations

Husqvarna?s anti vibration system efficiently separates your hands from the vibrations generated by the engine and the cutting equipment. This is to protect your body but also to reduce the fatigue in your arms and hands and in the end of the day contribute to make your workday more productive.

Specifications

Do you need further details to make the right decision? Learn more in the specifications section below.?Locate your dealer

Compare Chainsaws

?Engine

Cylinder displacement

70.6 ???

Power output

3.7 kW

Maximum power speed

9300 rpm

Idling speed

2700 rpm

Spark plug

NGK BPMR7A

Electrode gap

0.5 mm

Torque, max.

4.2 Nm

Fuel consumption

442 g/kWh

Fuel consumption

1.63 kg/h

?Equipment

Bar length (inch)

20″

Recommended bar length, max

28 in

Recommended bar length, max

70 cm

Recommended bar length, min

15 in

Recommended bar length, min

38 cm

Chain speed at 133% of maximum engine power speed

27.5 m/s

?Dimensions

Weight (excl. cutting equipment)

6.5 kg

?Lubricant

Oil tank volume

0.35 l

Oil pump type

Adjustable flow, no flow at idle

?Sound and Noise

Sound power level, guaranteed (LWA)

119 dB(A)

Sound power level, measured

117 dB(A)

Sound pressure level at operators ear

105 dB(A)

?Vibration

Equivalent vibration level (ahv, eq) front handle

5.2 m/s?

Equivalent vibration level (ahv, eq) rear handle

5.3 m/s?
