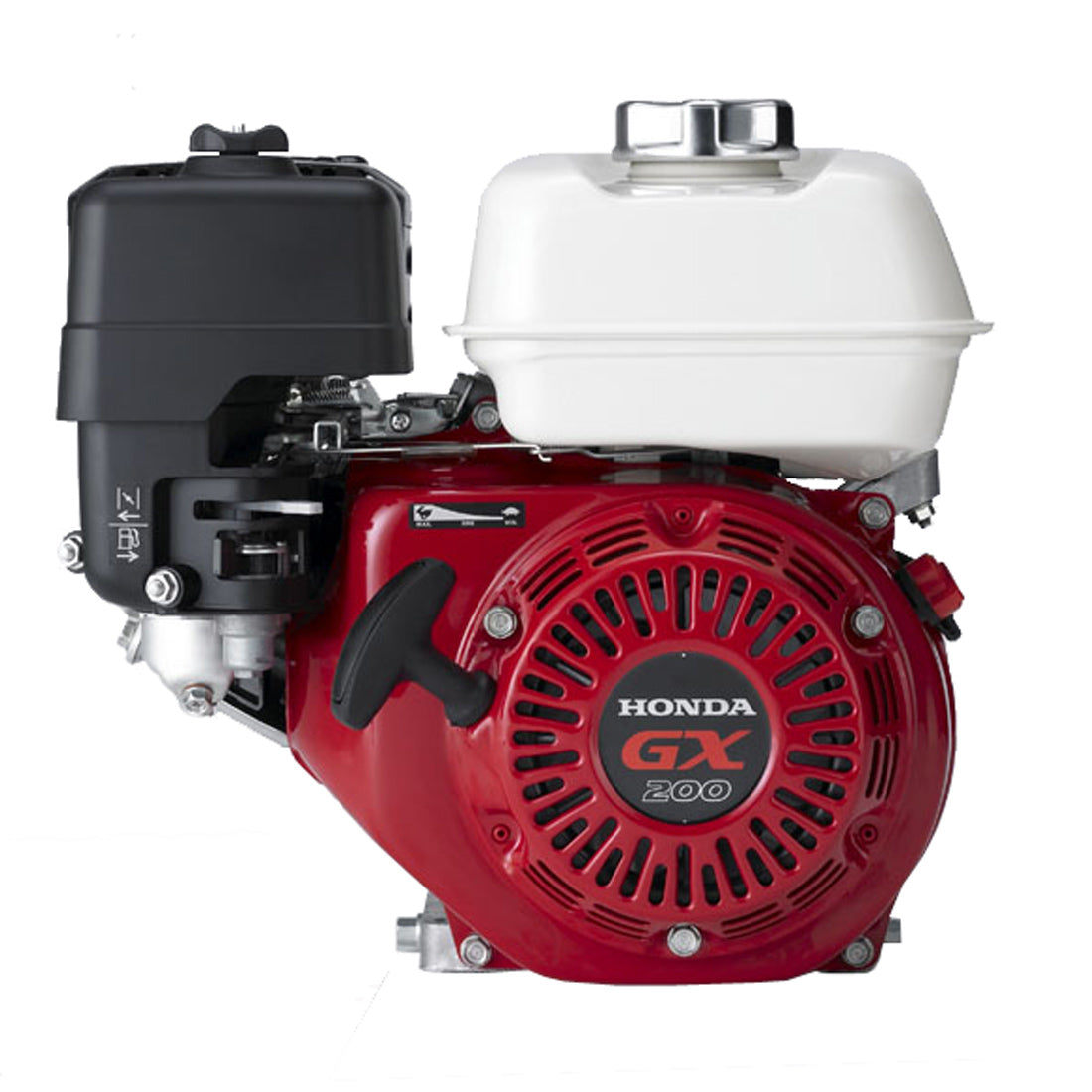

Honda GX200 6.5HP Petrol Engine (GX Series) - Manual Start / QX - 3/4 Inch Keyway

Honda GX200 6.5HP Petrol Engine (GX Series) – Manual Start / QX – 3/4 Inch Keyway

$590.00

Honda GX200 6.5HP Petrol Engine (GX Series) – Manual Start / QX – 3/4 Inch Keyway. SKU/model GX200-QX. Option: Manual Start / QX – 3/4 Inch Keyway. 590.00. Shaft: 3/4 Inch 61.7 mm Straight keyway shaft.

In Stock

Check Delivery Cost

Enter your postcode to check delivery options before checkout.

Did you like this product? Add to favorites now and follow the product.

Add to wishlist
Need product advice?

Call Hampton Mower Centre on (03) 9598 6741

Low Prices

Price match guarantee

Expert Product Advice.

Contact Hampton Mower Centre for fitment and parts support.

In-House Experts.

We know our products

Easy Returns.

Quick & Hassle Free

Category:

Description

Product overview

This listing is for the Honda GX200 6.5HP Petrol Engine (GX Series) – Manual Start / QX – 3/4 Inch Keyway as a separate simple product for the exact Manual Start / QX – 3/4 Inch Keyway option. Use this replacement engine only where the engine model, shaft and application requirements match.

Key specifications

Brand Honda
Engine model / series Honda GX200 6.5HP Petrol Engine (GX Series)
Engine style / orientation Horizontal Shaft
Source option label Manual Start / QX – 3/4 Inch Keyway
Source SKU / model code GX200-QX
Horsepower 6.5
Engine displacement / cc 196
Starter type Manual Start
Fuel tank 3.1 L
Dimensions 313 x 376 x 346
Dry weight 16.0 kg
Shaft diameter 3/4 Inch
Shaft length 61.7 mm
Shaft type / keyway / taper / thread Straight keyway shaft
Source specification Engine Type 4-stroke, overhead valve, single-cylinder
Source specification Displacement (cc) 196
Source specification Horsepower Class (hp) 6.5
Source specification Fuel Type Unleaded
Source specification Oil Capacity (Ltr) 0.6
Source specification Oil Alert System Yes
Source specification Fuel Tank Capacity (Ltrs) 3.1
Source specification Dimensions LxWxH (mm) 313 x 376 x 346
Source specification Various shaft options & reduction options available as per below
Source specification QX Keyway Shaft – 19 mm (3/4") Diameter x 61.7mm Long
Source specification SX Keyway Shaft – 20mm Diameter x 61.7mm Long
Source specification TX Threaded Shaft – 5/8" Diameter x 2-27/64" Long
Source specification LX – 2:1 Reduction Drive / 20mm Diameter Keyway Shaft
Source specification HX – 6:1 Reduction Box / 19mm (3/4") Diameter Keyway Shaft

Typical applications / fitment

Suitable as a replacement engine only for applications that match the model, horsepower class, shaft configuration, dimensions and installation requirements shown above.

Please confirm your engine model, shaft type, shaft size, shaft length and application before ordering. If you are unsure, contact Hampton Mower Centre with your model/type code and photos.

Additional information

Weight 16 kg
Dimensions 31.3 × 37.6 × 34.6 cm
