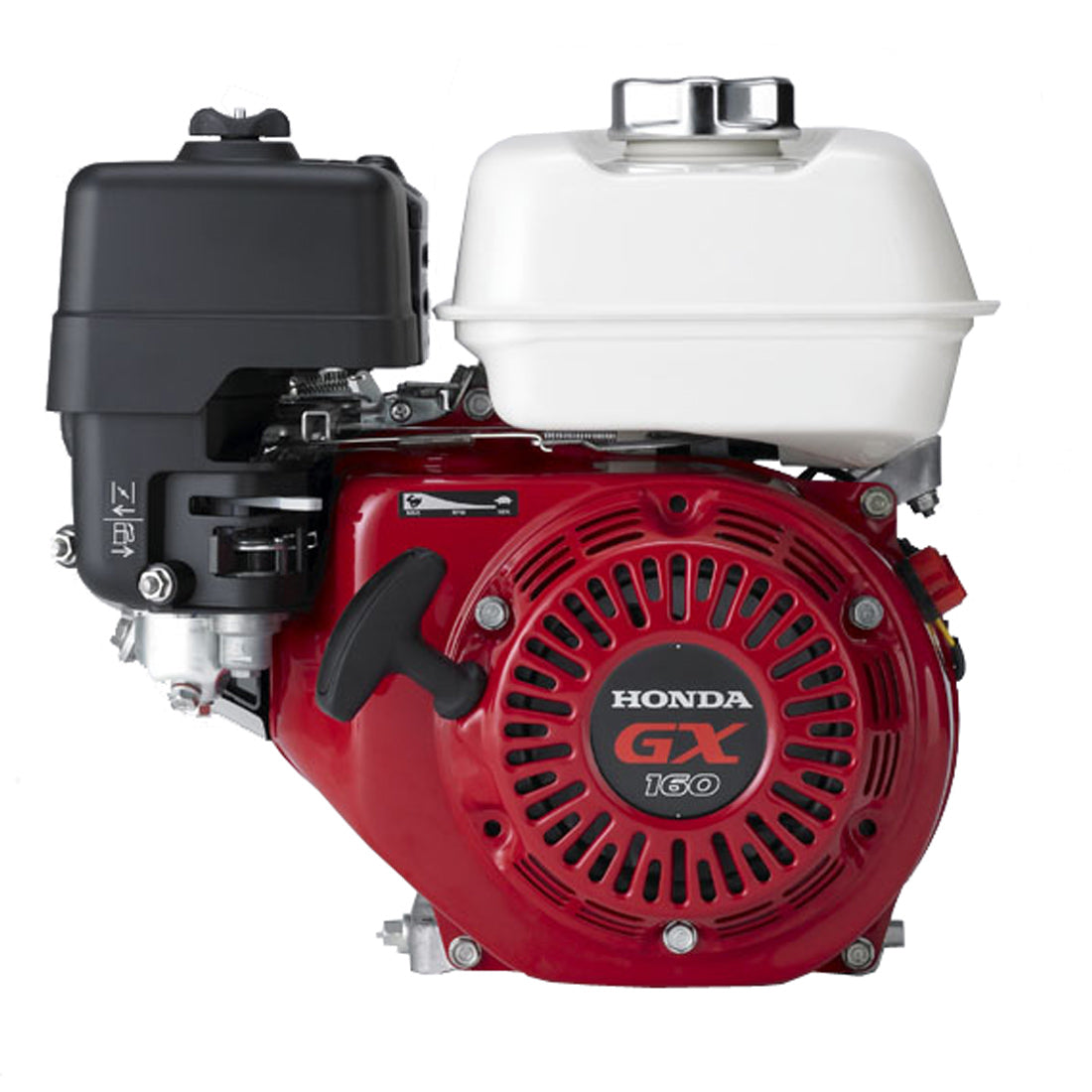

Honda GX160 5.5HP Petrol Engine (GX Series) - QX - 3/4 Inch Keyway

Honda GX160 5.5HP Petrol Engine (GX Series) – QX – 3/4 Inch Keyway

$585.00

Honda GX160 5.5HP Petrol Engine (GX Series) – QX – 3/4 Inch Keyway. SKU/model GX160-QX. Option: QX – 3/4 Inch Keyway. 585.00. Shaft: 3/4 Inch 61.7 mm Straight keyway shaft.

In Stock

Check Delivery Cost

Enter your postcode to check delivery options before checkout.

Did you like this product? Add to favorites now and follow the product.

Add to wishlist
Need product advice?

Call Hampton Mower Centre on (03) 9598 6741

Low Prices

Price match guarantee

Expert Product Advice.

Contact Hampton Mower Centre for fitment and parts support.

In-House Experts.

We know our products

Easy Returns.

Quick & Hassle Free

Category:

Description

Product overview

This listing is for the Honda GX160 5.5HP Petrol Engine (GX Series) – QX – 3/4 Inch Keyway as a separate simple product for the exact QX – 3/4 Inch Keyway option. Use this replacement engine only where the engine model, shaft and application requirements match.

Key specifications

BrandHonda
Engine model / seriesHonda GX160 5.5HP Petrol Engine (GX Series)
Engine style / orientationHorizontal Shaft
Source option labelQX – 3/4 Inch Keyway
Source SKU / model codeGX160-QX
Horsepower5.5
Fuel tank3.1 L
Dimensions312 x 362 x 346
Dry weight16.0 kg
Shaft diameter3/4 Inch
Shaft length61.7 mm
Shaft type / keyway / taper / threadStraight keyway shaft
Source specificationEngine Type 4-stroke, overhead valve, single-cylinder
Source specificationBore x Stroke (mm) 68 x 45
Source specificationHorsepower Class (hp) 5.5
Source specificationFuel Type Unleaded
Source specificationFuel Tank Capacity (Ltrs) 3.1
Source specificationOil Capacity (Ltr) 0.6
Source specificationOil Alert System Yes
Source specificationDimensions LxWxH (mm) 312 x 362 x 346
Source specificationVarious shaft options & reduction options available as per below
Source specificationQX Keyway Shaft – 19 mm (3/4") Diameter x 61.7mm Long
Source specificationSX Keyway Shaft – 20mm Diameter x 61.7mm Long
Source specificationPX Threaded Shaft – 3/4" Diameter x 2-27/64" Long
Source specificationTX Threaded Shaft – 5/8" Diameter x 2-27/64" Long
Source specificationHX – 6:1 Reduction Box / 19 mm (3/4") Diameter Keyway Shaft
Source specificationLX – 2:1 Reduction Drive / 20mm Diameter Keyway Shaft

Typical applications / fitment

Suitable as a replacement engine only for applications that match the model, horsepower class, shaft configuration, dimensions and installation requirements shown above.

Please confirm your engine model, shaft type, shaft size, shaft length and application before ordering. If you are unsure, contact Hampton Mower Centre with your model/type code and photos.

Need workshop support or a repair?

For repairs and servicing, Hampton Mowerpower is the physical workshop at 87 Ludstone Street, Hampton VIC 3188. Commercial equipment repairs are normally targeted at approximately 1-2 business days and domestic repairs approximately 3-4 business days, subject to diagnosis, approval, parts availability, repair complexity and workshop conditions.

Request a repair | View repair services | Call (03) 9598 6741

Not sure if the machine is worth repairing or whether an engine can be replaced? Ask first with the equipment type, brand/model and symptoms.

Need a repair before replacing the machine?

Commercial Repair Priority — Typical Turnaround 1–2 Business Days. Domestic Repairs — Typical Turnaround 3–4 Business Days. Typical turnaround applies once the machine has been assessed and the repair is approved. Special-order or backordered parts, major engine work, unusual faults or additional diagnosis may take longer.

Repair labour: Lawn Mower $89 + parts; Chainsaw $89 + parts; Line Trimmer / Brushcutter $89 + parts. Minor repairs $22 / $44 / $55 + parts depending on the work required. Larger / commercial equipment including Demo Saw, Jackhammer, Generator, Ride-On Mower, Wacker / Compaction Equipment and Shredder: $155 + parts.

3-Month Domestic Repair & Service Warranty. This warranty relates to the domestic repair/service work performed.

Book a repair | View repair pricing | Call (03) 9598 6741 | Get directions

Additional information

Weight16 kg
Dimensions31.2 × 36.2 × 34.6 cm
