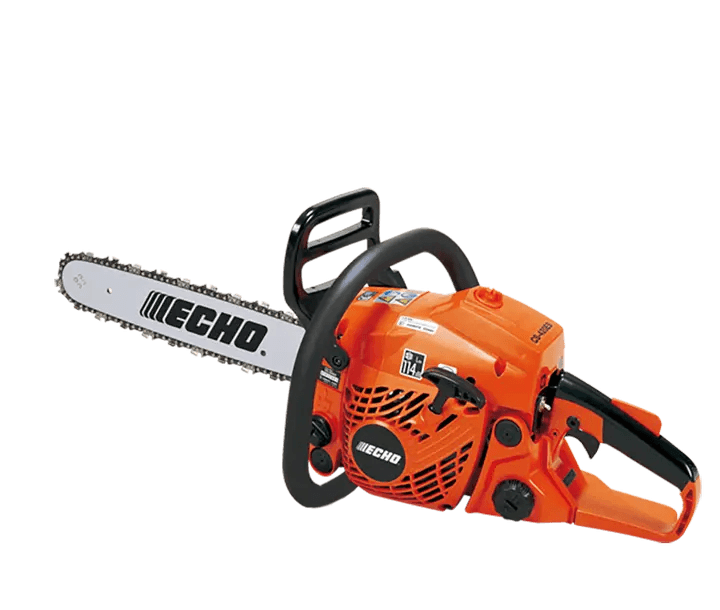

ECHO CS-420ES
Original price was: $829.00.$699.00Current price is: $699.00.
Check Delivery Cost
Did you like this product? Add to favorites now and follow the product.
Description
Incredible power to weight ratio with the robust build standards ECHO is famous for.
Professional engine
Featuring a 40.2 cc professional grade engine, giving exceptional power and performance.
Compact, ergonomic design
ECHO chain saws are all designed to the same professional standard, with no exceptions. Hard working, high quality with renowned Japanese build standards.
Bar and chain
With a 43cm (17″) guide bar, the CS-420ES is a mid-range, low emission chainsaw that could be used by tree surgeons or farmers for felling trees and logging.
Best Features
Power to weight ratio
Super light-weight design with exceptional power.
Ergonomics
Designed to maximise efficiency and comfort.
Easy start engine
ECHO’s patented system for effortless starting.
Product Details.
| Engine displacement (cm³) | 40.2 |
|---|---|
| Output (kw) | 1.6 |
| Output (ps) | 2.2 |
| Dry Weight (kg) | 4.6 |
| Fuel tank capacity (l) | 0.41 |
| Chain Oil Tank Capacity (ml) | 280 |
| Fuel Consumption At Maximum Engine Power (L/h) | 0.95 |
| Priming Pump | Yes |
| Ignition System | CDI |
| Start Assist System | ES-start |
| Chain Brake | Inertia |
| Choke w/ Automatic Fast Idle Release | Yes |
| Chain Tensioner | Side |
| Saw Chain Pitch (inch) | 0.325 |
| Guide Bar Gauge (inch) | 0.58 (0.050) |
| Applicable Bar Length (cm/inch) 1 | 38, 45 / 15, 18 |
| Sound pressure level (dB(A)) | 99.2 |
| Sound power level (dB(A)) | 110.0 |
| CO² (g/kW・h) 2 | 958 |
| Vibration Front handle/Rear handle (m/s²) | 4.4 / 6.4 |
- 1
- Not all lengths available in every country. Available bar lengths may incur differing RRPs. Please check with your local dealer.
- 2
- This CO² measurement results from testing a (parent) engine representative of the engine type (engine family) over a fixed test cycle under laboratory conditions and does not imply or express any guarantee of the performance of a particular engine.
Need workshop support or a repair?
For repairs and servicing, Hampton Mowerpower is the physical workshop at 87 Ludstone Street, Hampton VIC 3188. Commercial equipment repairs are normally targeted at approximately 1-2 business days and domestic repairs approximately 3-4 business days, subject to diagnosis, approval, parts availability, repair complexity and workshop conditions.
Request a repair | View repair services | Call (03) 9598 6741
Not sure if the machine is worth repairing or whether an engine can be replaced? Ask first with the equipment type, brand/model and symptoms.
Need a repair before replacing the machine?
Commercial Repair Priority — Typical Turnaround 1–2 Business Days. Domestic Repairs — Typical Turnaround 3–4 Business Days. Typical turnaround applies once the machine has been assessed and the repair is approved. Special-order or backordered parts, major engine work, unusual faults or additional diagnosis may take longer.
Repair labour: Lawn Mower $89 + parts; Chainsaw $89 + parts; Line Trimmer / Brushcutter $89 + parts. Minor repairs $22 / $44 / $55 + parts depending on the work required. Larger / commercial equipment including Demo Saw, Jackhammer, Generator, Ride-On Mower, Wacker / Compaction Equipment and Shredder: $155 + parts.
3-Month Domestic Repair & Service Warranty. This warranty relates to the domestic repair/service work performed.
Book a repair | View repair pricing | Call (03) 9598 6741 | Get directions
Additional information
| Weight | 2 kg |
|---|---|
| Dimensions | 45 × 30 × 20 cm |
