Briggs & Stratton 3.5HP Petrol Engine (550 Series)

Price range: $399.00 through $429.00

Check Delivery Cost

Enter your postcode to check delivery options before checkout.
Have a Question? Ask a Specialist

(+03) 9598 6741 Start Live Chat

Competitive Pricings

Price match guarantee

Guaranteed Fitment.

Always the correct part

Outdoor Experts.

We know our products

Friendly & Trustworthy

No Pressure, Just Solutions

Categories: ,
Tag:

Description

DESCRIPTION

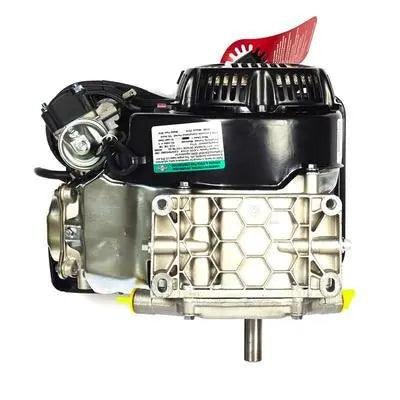

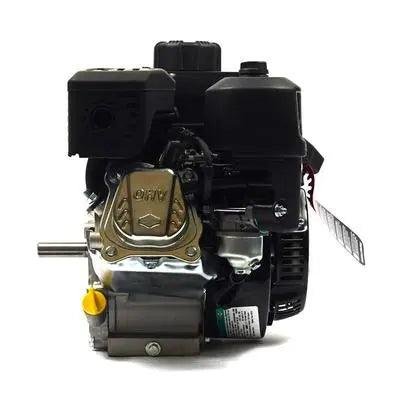

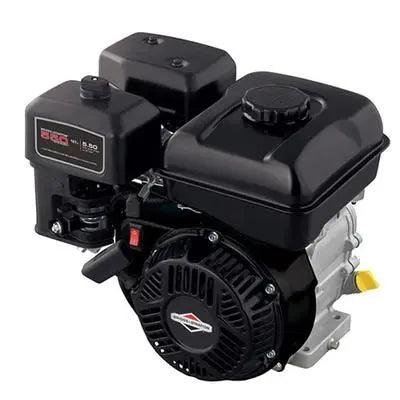

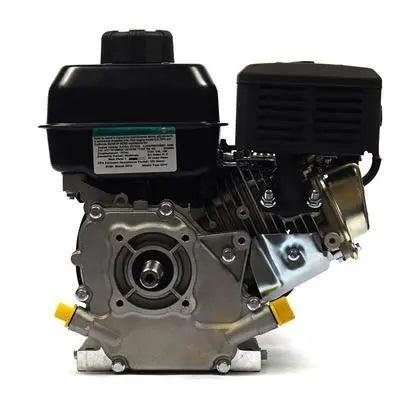

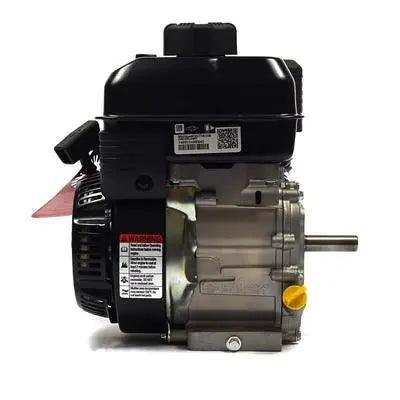

The Briggs & Stratton powerful 550 Series petrol? engine utilizes (OHV) overhead valve design technology. It features an automotive style air filter, cast iron cylinder sleeve, and dual bearings for longer life.This Briggs & Stratton has a great reputation for easy? starting and great reliability.

Typical Applications 😕This Briggs & Stratton 550 series engine is a? ideal replacement engine for most reel mowers on the market, including Scott Bonnar models. Other? applications are cement mixers, tillers etc.

KEY FEATURES

  • Overhead Valve (OHV) Technology
  • Briggs Model?083132
  • Duralube Splash Lubrication
  • Float Feed carburetor and Mechanical Governor
  • Dura-Bore cast iron cylinder sleeve
  • Magnetron Electronic Ignition System
  • Recoil Start w/ Automatic Compression release
  • Maxi-clean Automotive Air Filter Design
  • Super Lo-Tone Muffler
  • Compact Design
  • Dual Ball Bearings
  • 10?(in) x 13.6?(in) x 12.6 (in) (LxWxH)
  • 2 Year Warranty – Australia Wide

DOWNLOADS

    SPECIFICATIONS

    Engine Series

    Briggs & Stratton 550?Series

    Engine Style

    Horizontal

    Cylinders

    1

    Engine Type

    4 Cycle OHV

    Cooling System

    Air

    Dry Weight

    35?Lbs

    Engine CC

    127cc

    Engine HP

    3.5hp

    Cylinder Bore Type

    Cast Iron

    Bore

    2.44?inches

    Stroke

    1.65?inches

    Starting System

    Recoil?start

    Ignition System

    Electronic Spark

    Oil Filter

    No

    Oil capacity

    20?oz

    Muffler

    Included

    Air Cleaner

    Dual Element

    Fuel Tank

    0.5 Gallons

    Crankshaft Rotation

    Counterclockwise

    Shaft Size

    Options listed above

    Crankshaft Type

    Straight Keyway

    Crankshaft Diameter

    3/4?Inch or 5/8 Inch

    Crankshaft Length

    2-27/64″

    Crankshaft End Tapped Size

    5/16-24 – 1/4-28

    Crankshaft Keyway Width

    3/16 Inches

    Warranty

    2 Years

    Dimensions

    10 (in) x 13.6(in) x 12.6?(in) (LxWxH)

    Additional information

    Weight 15 kg
    Dimensions 70 × 50 × 45 cm
