Description

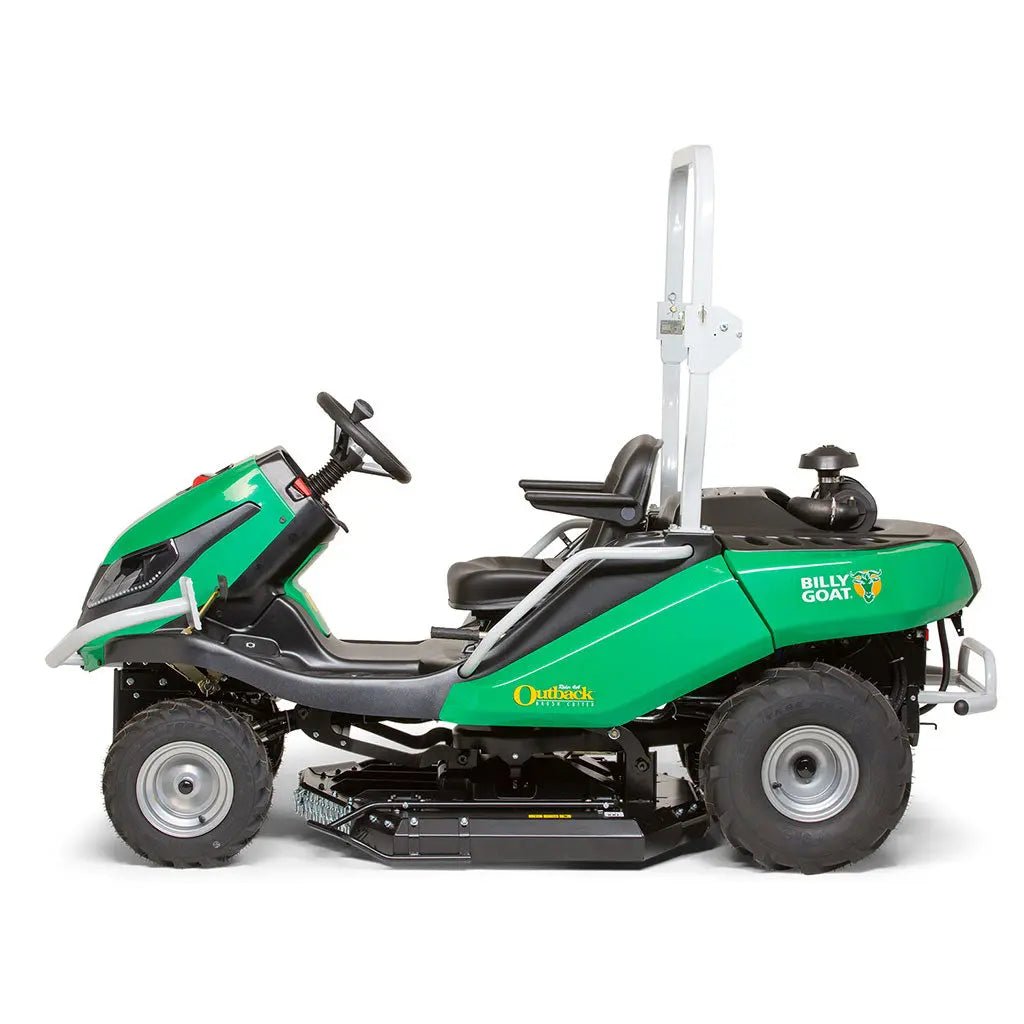

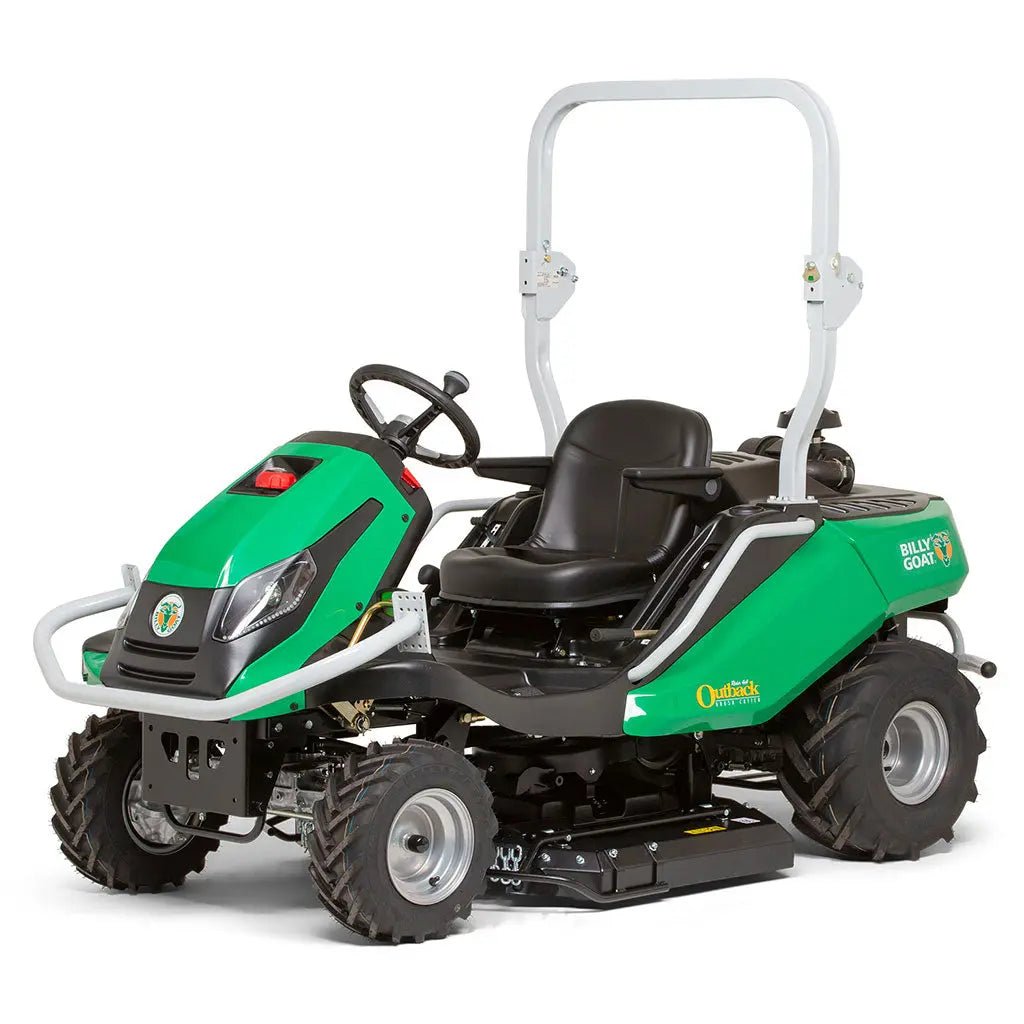

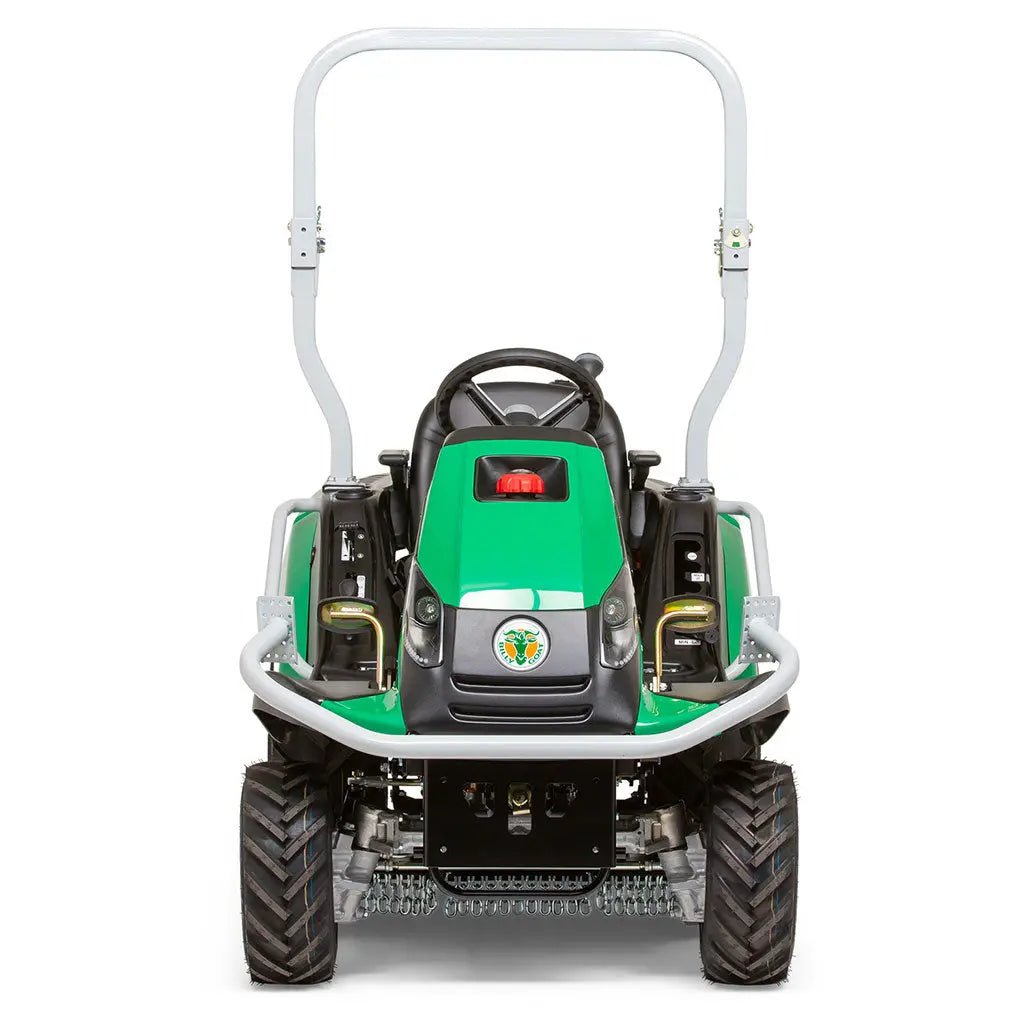

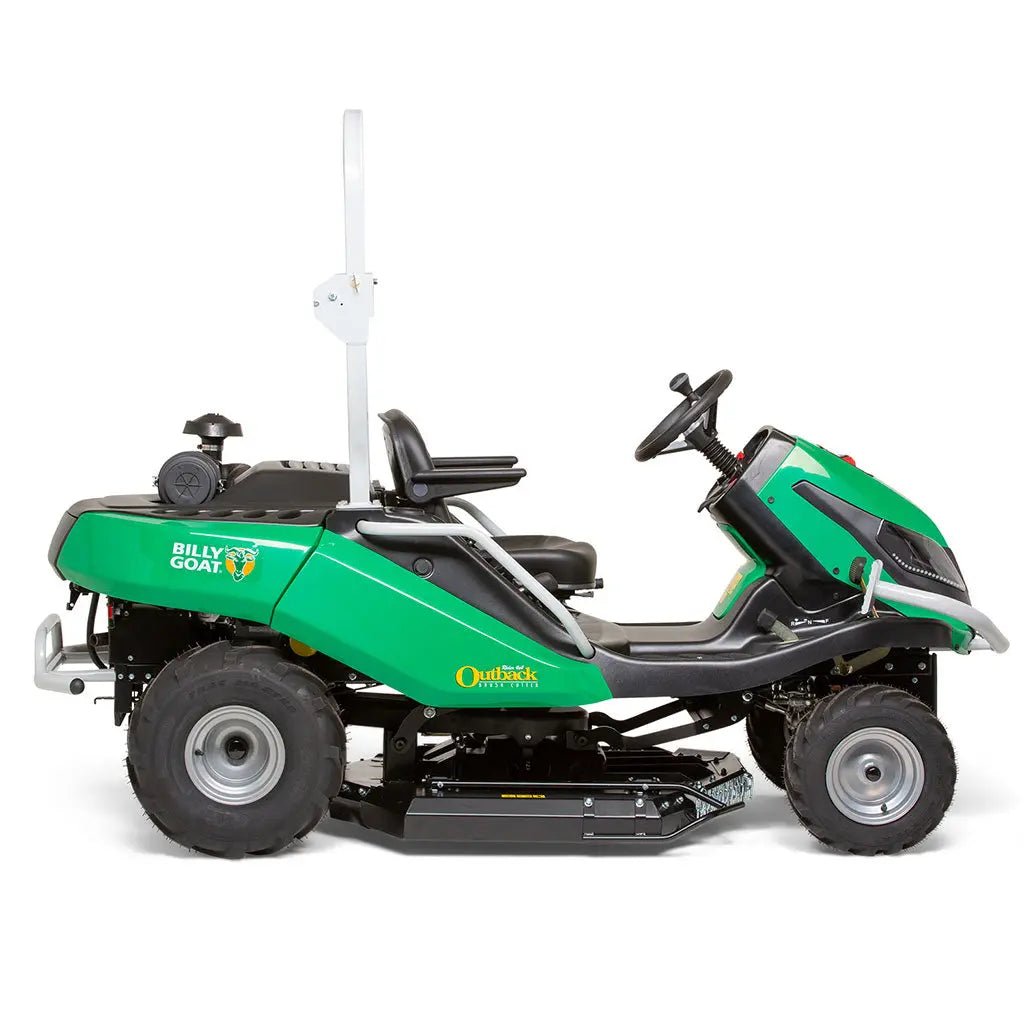

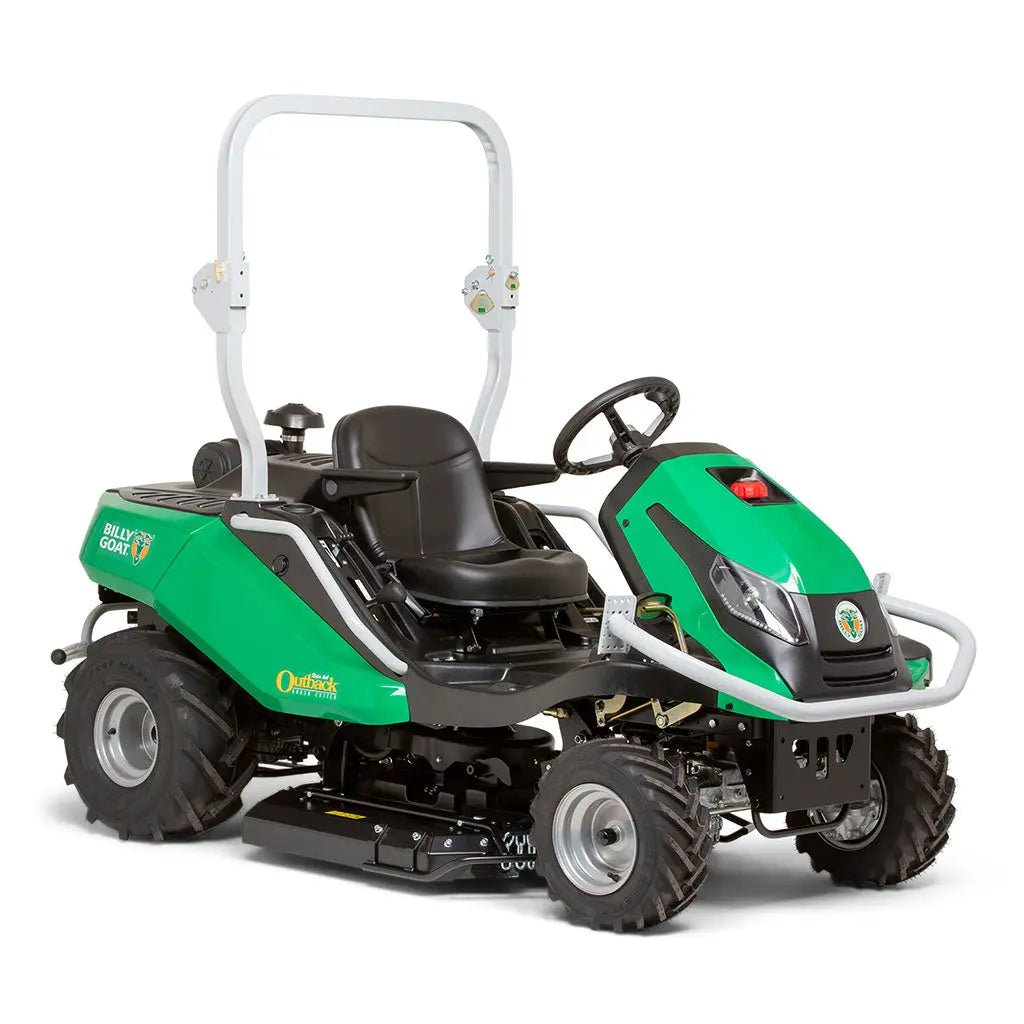

The Billy Goat Outback? 4WD Rider has been designed with a low centre of gravity in combination with a four wheel drive system that enables it to tackle those hard-to reach areas that wouldn’t have been accessible to traditional machines. The machine has been made for cutting through overgrown brush, fields, clearing meadows or hiking trails.

The spacious platform provides sufficient space and comfort for the operator. The heavy duty mower deck has a cutting width of 92cm (36″) and is equipped with swing-back cutter blades that swing away when accidental contact is made with a solid object. These features help protect the mower deck and cutter blades from accidental damage. The height of cut is adjustable in five positions between 35mm and 135mm.

Billy Goat Outback? ride-on brush cutters have set the highest standard for professional brush cutting equipment on the market. The new Outback? 4DW Rider continues to expand the Billy Goat line-up. Look no further than the Billy Goat to cut meadow and brush the easy way.

Features

Professional Engine

The 26 HP Vanguard? 810cc EFI engine features reduced fuel consumption, increased governing control and load acceptance, optimized chokeless starting and altitude compensation – all ideal for commercial turf applications.

ROPS Structure

A certified ROPS (Roll Over Protection Structure) with safety belt protects the machine and operator for rolling over and can fold 180 degrees backwards to allow for easier loading inside a van or trailer.

User-Friendly Dashboard

The operators compartment features a dashboard with control and warning lights, electric PTO engagement switch with soft start function, steering wheel with tilt-function and spinner knob, cruise control switch and a parking-brake lever.

Heavy Duty Bumpers

The wide front and rear bumpers protect the rider against accidental impacts and incorporates tie-down points for securing the machine during transportation.

Durable 92cm Mower Deck

The strong fabricated rear discharge deck discharges grass clippings rearwards. Replaceable swing-back cutter blades reduce accidental blade damage, with flip-up lids on the side of the deck providing easy access to the swing-back cutters when needed.

Ergonomic Operators Platform

The large operators platform provides sufficient space for even the tallest user. Secundairy footrests provide a secure foothold expecially for use on hillsides. The contoured seat with armrests keeps you comfortable all day and is equipped with fore and aft positioning. Integrated hand rails provide a secure grip on the machine when needed.

Drive System

The Tuff Torq? 4WD system automatically controls the output to all drive wheels. Combined with a manual locking differential, this 4WD system provides all the traction you need in challenging terrain.

Clean Air

The large Donaldson? dual stage industrial cyclonic air cleaner keeps the incoming air clean and extends the service interval by 4x when compared to a traditional panel-style air filter.

Drive Wheels

Large drive wheels with agricultural tread ensure sufficient grip. The pivoting front axle allows all four driven wheels to remain in contact with the ground for maximum traction.

Transmission Oil Cooler

A remote transmission oil cooler controls the transmission oil temperature even in the toughest conditions, reducing thermal oil breakdown for an extended operating life of the system.

Specifications

Engine Make

Vanguard

Engine Model

EFI V-Twin

Performance HP*

Displacement (cc)

810

Starting

Electric Start

Productivity (m²/h)

N/A

Cutting Width (cm/in)

92 / 36

Height of Cut (cm)

5,0 – 13,5 (in transport mode max.16)

Height of Cut Adjustment

Adjustable in 5 positions

Drive Type

Self Propelled

Transmission Type

Variable Hydrostatic

Forward Speed (km/h)

0 – 9,5

Reverse Speed (km/h)

0 – 6

Gears Forward

0.0

Diff Lock

Manual

Weight (kg)

401

Length (cm)

235

Width (cm)

104

Height (cm)

174

Front Tire Size

16×6.50-8

Rear Tire Size

20×10.00-8

Mower Deck Lift

Mechanical

Fuel Tank Capacity

Product specification

Brand:	Billy Goat
Engine:	Briggs & Stratton
Engine Model:	Vanguard EFI V-Twin
Engine Type:	4-stroke
Displacement:	810cc
Horsepower:	26hp
Engine Cylinders:	2
Start Method:	Electric
Drive:	Self-propelled, Tuff Torq 4WD
Propulsion:	Hydrostatic
Speeds:	Forward drive: 0-9.5km/h Reverse: 0-6.5km/h
Width of Cut:	92cm / 36″
Minimum Cutting Height:	3.5mm
Maximum Cutting Height:	13.5mm
Cutting Height Adjustment:	Adjustable in 5 positions In transport mode max 16cm)
Differential Locking:	Manual
Assembled Dimensions:	L: 235cm x W: 104cm x H: 174cm
Weight:	390kg
