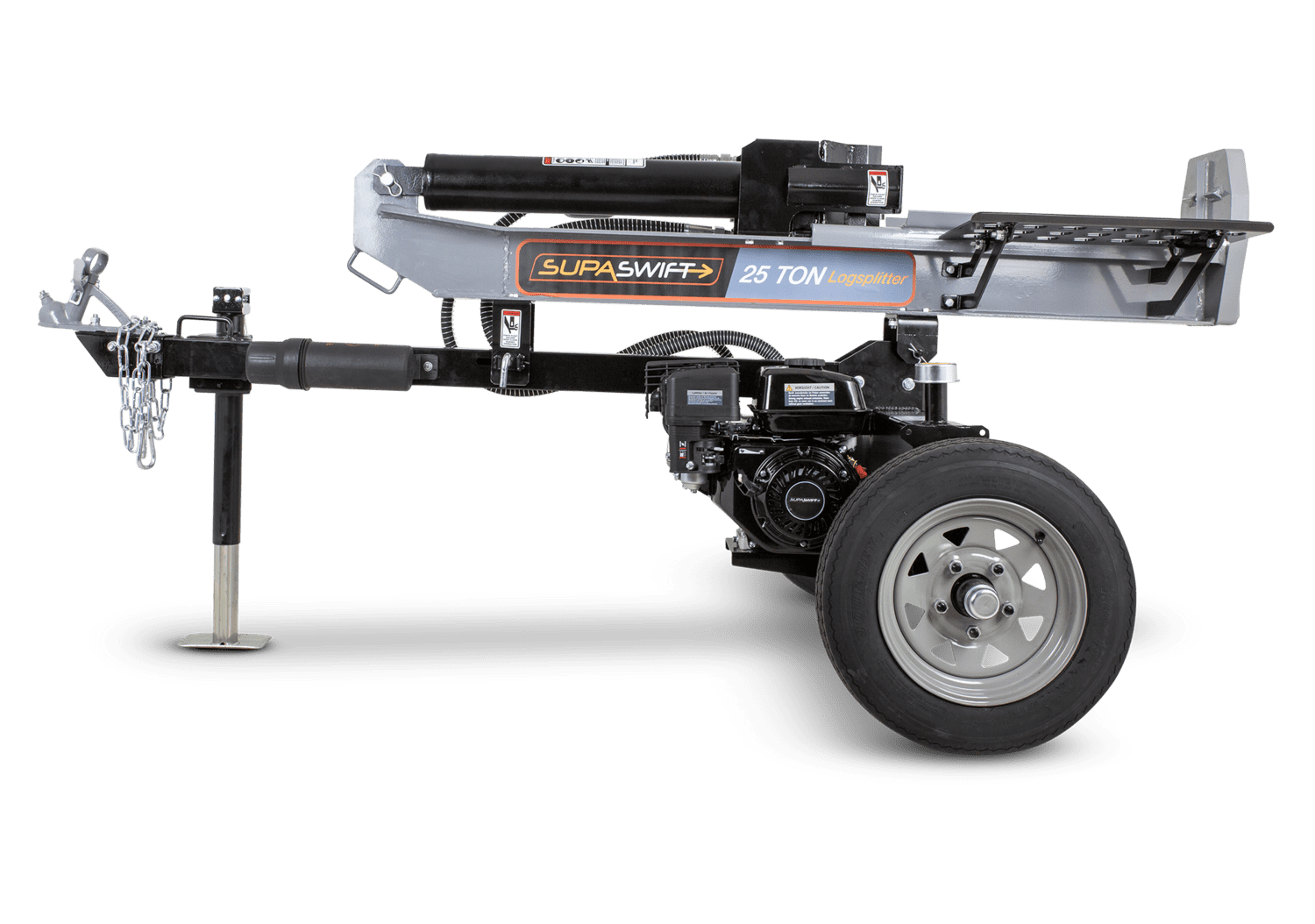

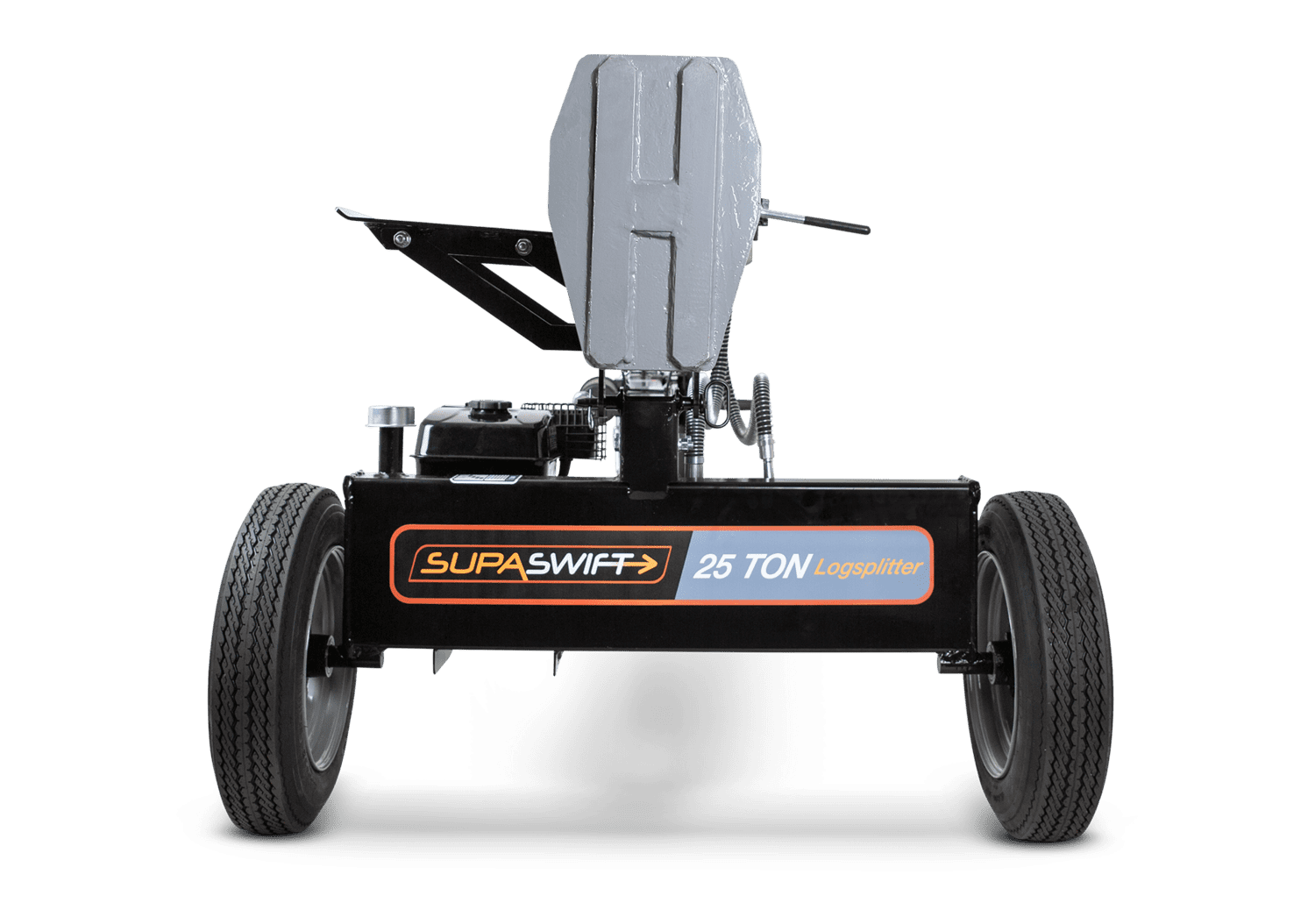

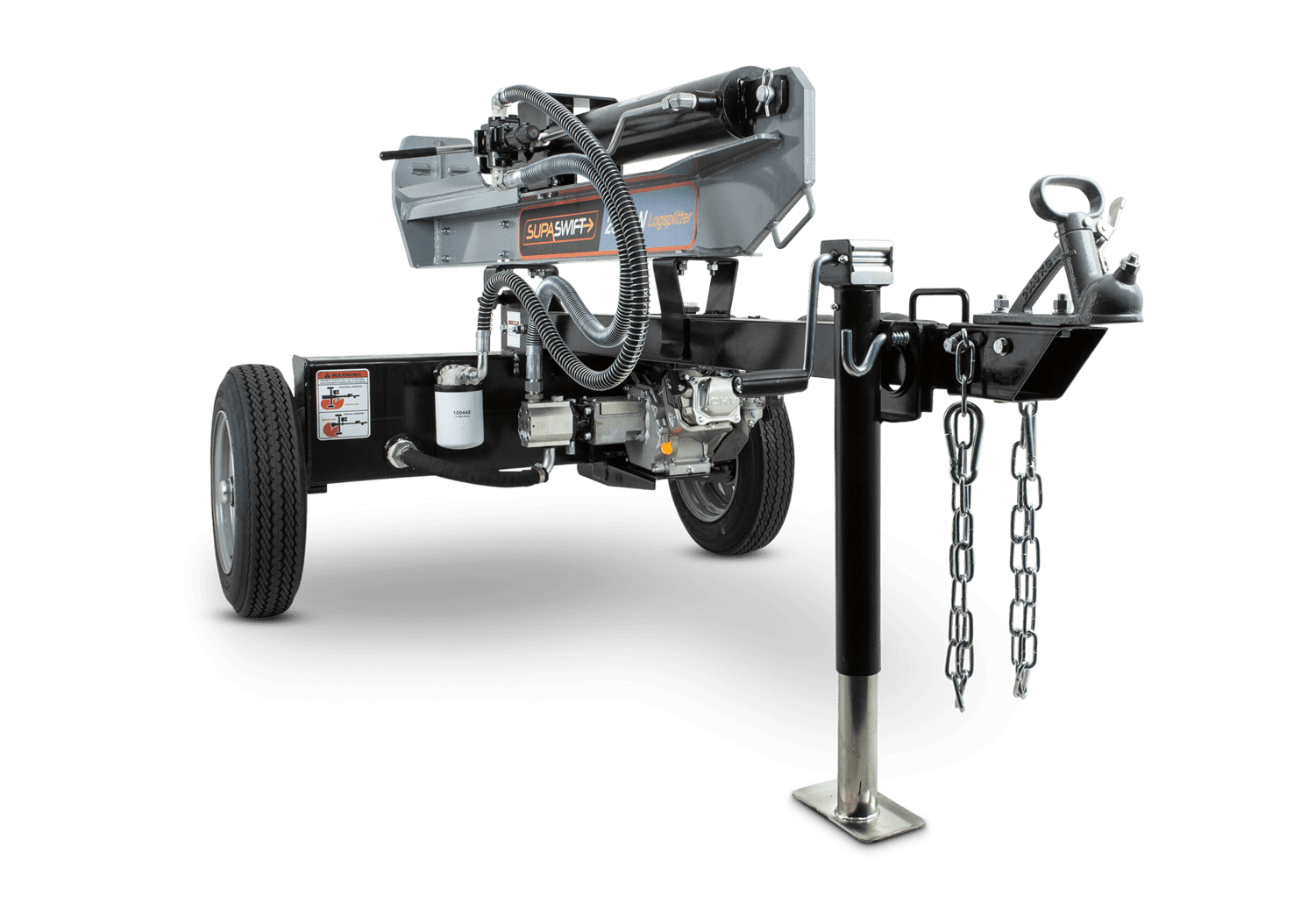

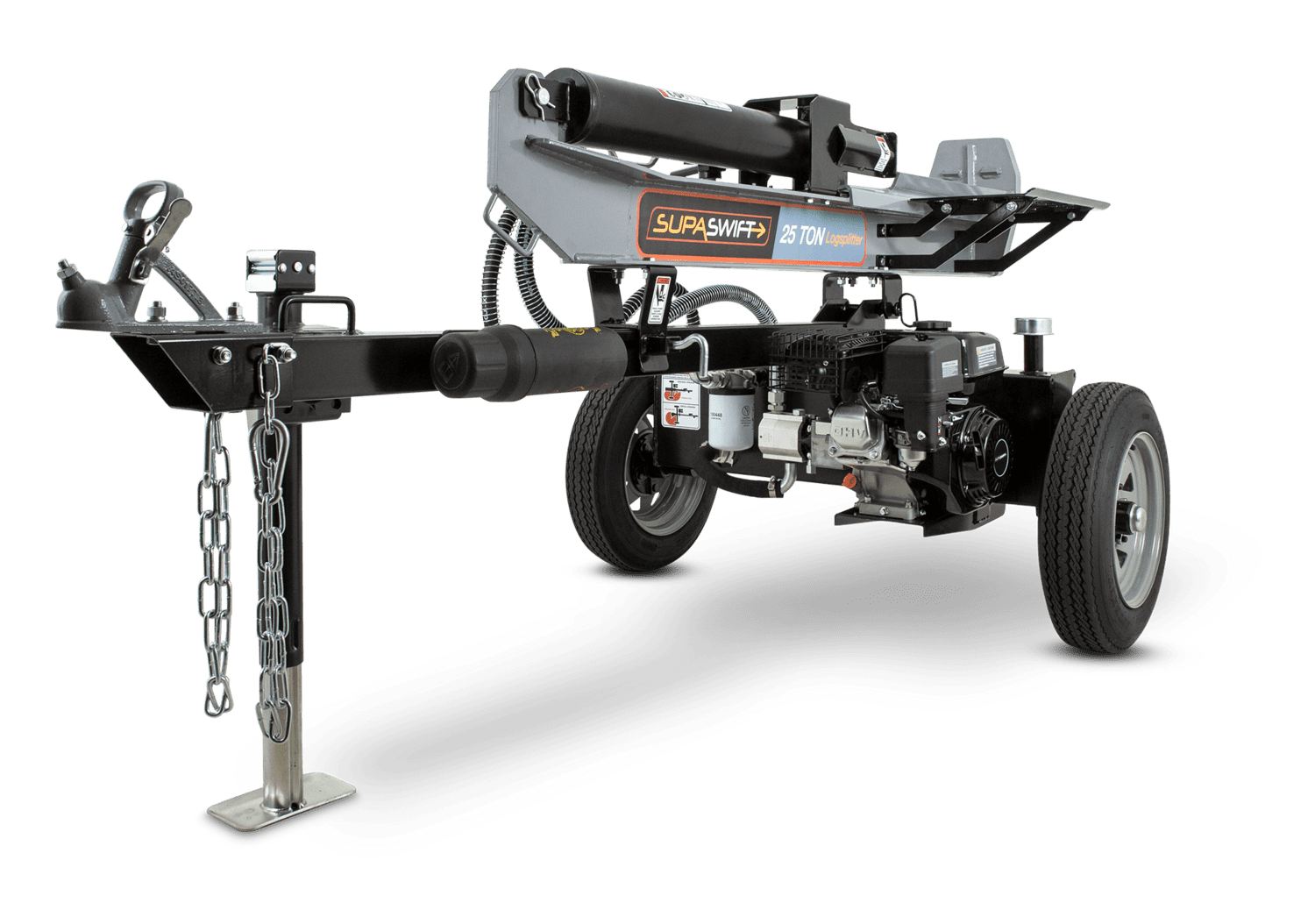

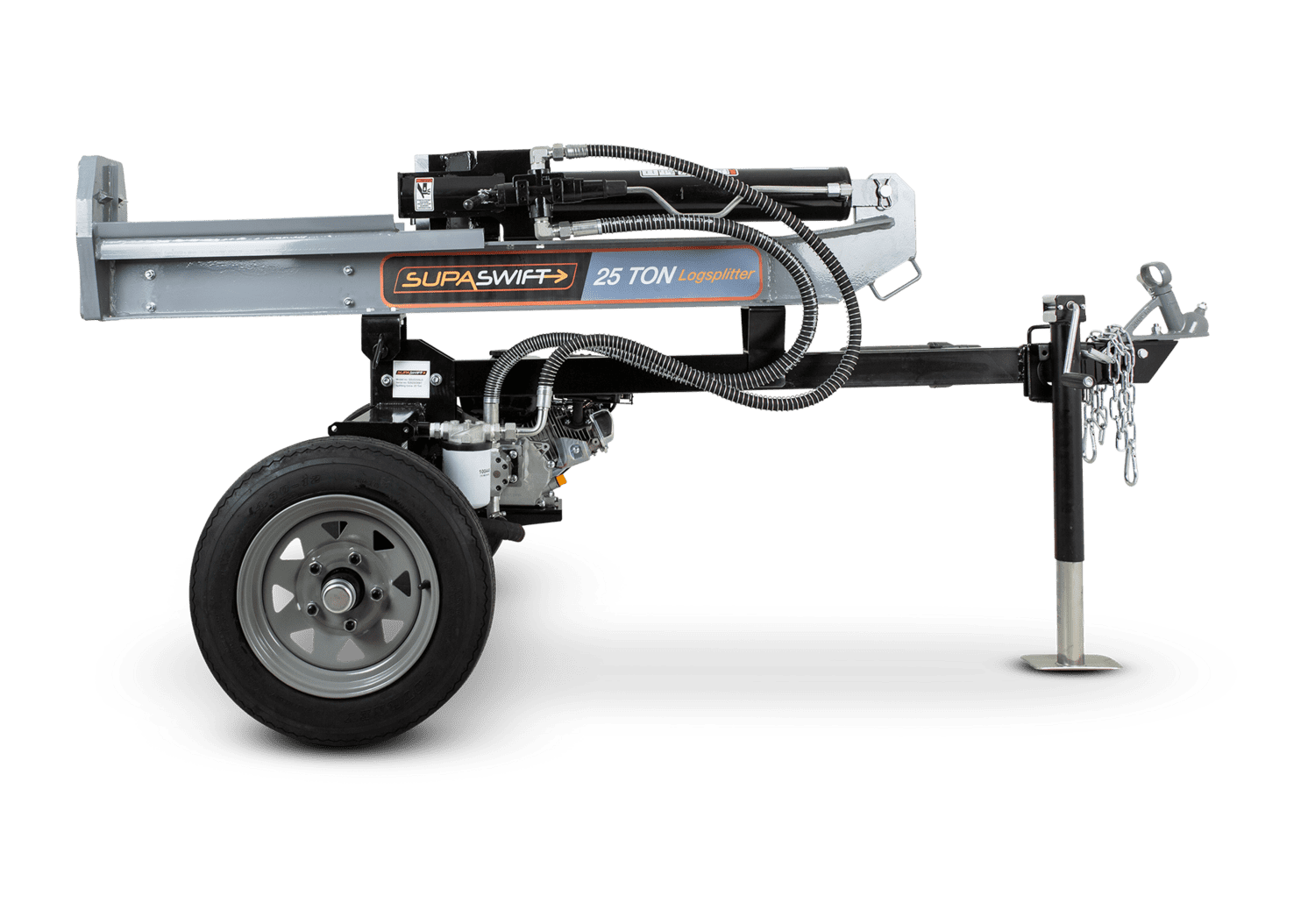

SupaSwift 525ALS 25-Ton Log Splitter

DETAILS

The SupaSwift 25-Ton log splitter provides quality and power at an affordable price. Fitted with a SupaSwift 6.5 hp (196 cc) engine, a manually activated auto return valve with an 10.9 second cycle time and quality features throughout this log splitter will provide many years of reliable service.

FEATURES

• Quality Engine – SupaSwift 6.5 hp (196 cc) single cylinder, horizontal shaft OHV engine.

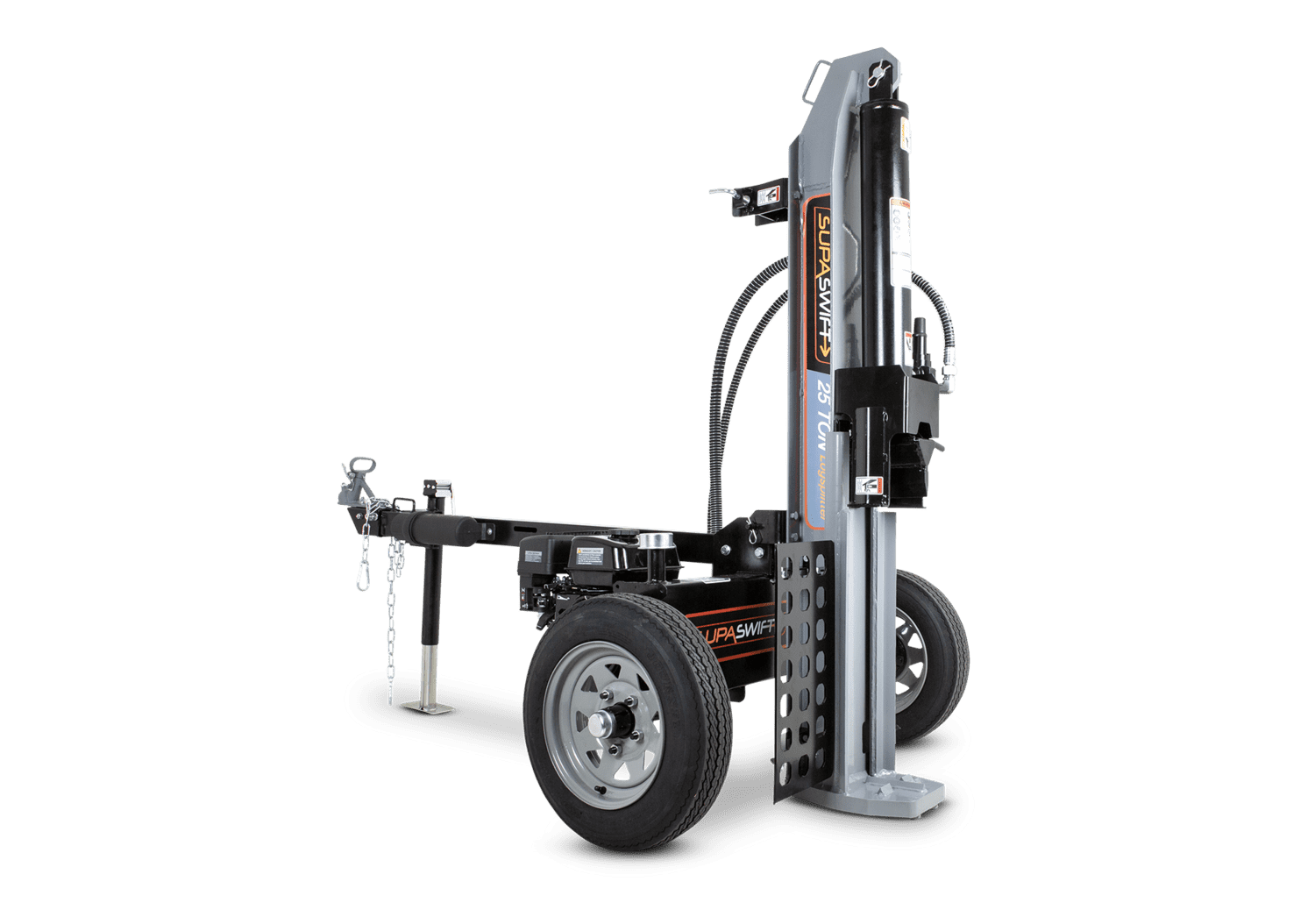

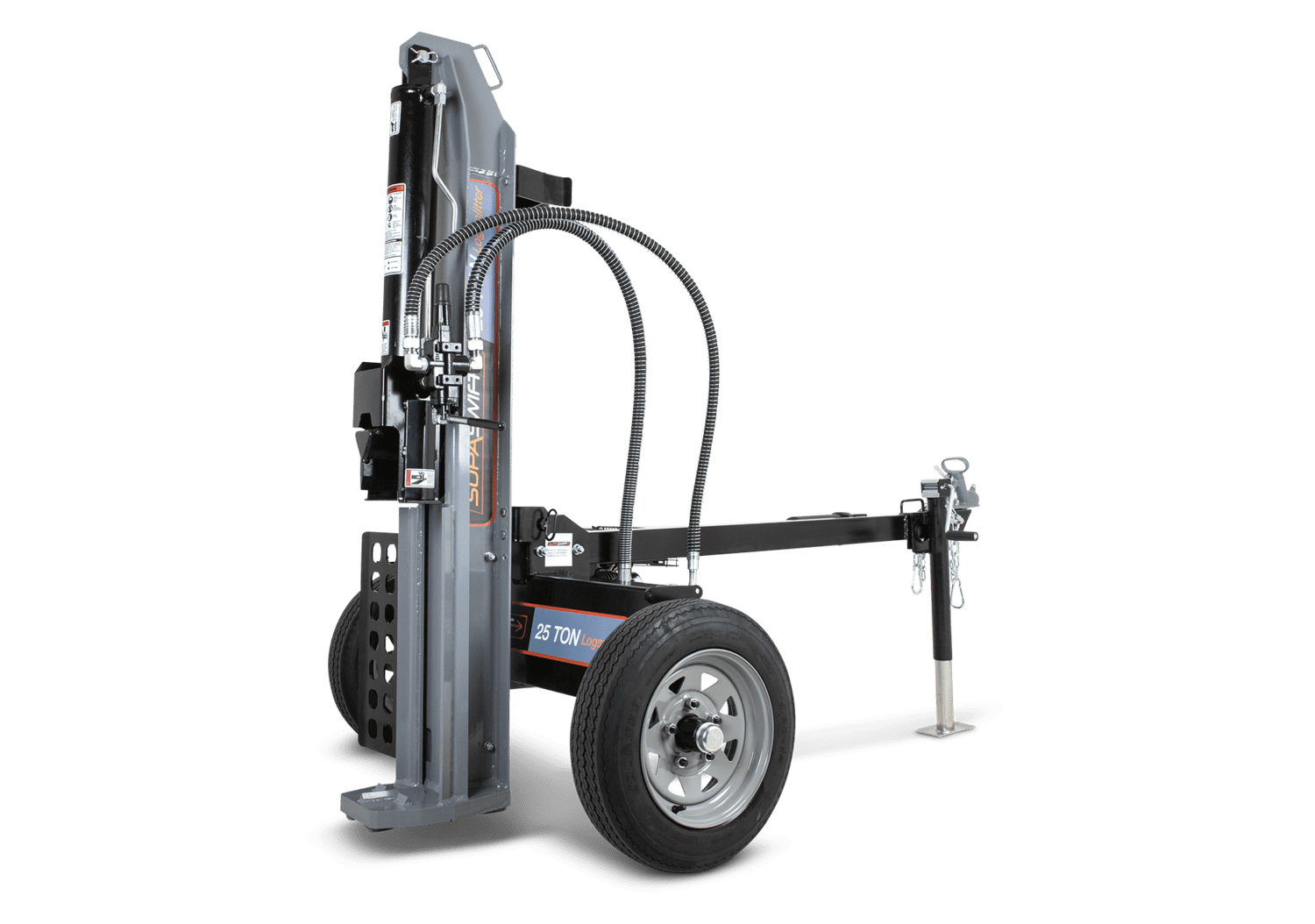

• Horizontal or vertical operation.
• 25 Tons of splitting force.
• Manually activated auto return valve.
• Two stage pump 13 GPM (49.21 litres per minute).
• Valve – Ergonomically positioned for operator comfort.
• Wedge: 8.5 ” (215.9 mm) High angled heat treated steel.
• Wheels / Tyres*: 4.80″ x 12″ D.O.T certified.
• Beam: 8.5″ (215.9 mm) Foot plate.

SPECIFICATIONS

All specifications are subject to change without notice.

• Domestic Warranty

  3 Year Domestic Warranty

• Commercial Warranty

  3 Month Commercial Warranty

• Hire/Rental Warranty

  3 Month Hire/Rental Warranty

• Engine

  SupaSwift 6.5 hp (196 cc) single cylinder, horizontal shaft OHV engine

• Hydraulic Ram Cylinder: (mm)

  Outside: 114.3 mm x 609.6 mm stroke / Inside: 101.6 mm x 622.3 mm stroke

• Hydraulic Tank Capacity: (L)

  25.5 litres

• Maximum Log Length: (mm)

  25″ / 635 mm

• Pump: (L)

  Two stage pump 13 GPM (49.21 litres per minute)

• Tow Hitch: (mm)

  *2″ (50 mm) ball hitch with safety chains – Aust style trailer bail hitch

• Wedge: (mm)

  8.5 ” (215.9 mm) High angled heat treated steel

• Operating Position

  Horizontal or vertical operation

• Capacity

  25 Tons of splitting force

• Valve

  Manually activated auto return valve with adjustable detent

• Cycle Time

  10.9 seconds (down and back)

• Wheels / Tyres

  *D.O.T approved 12″ x 4.80″ multi lug trailer wheel

• Beam (mm)

  8.5″ Foot plate / 215.9 mm Foot plate

• Ram Size

  1.75″ (44.45 mm) Dia
