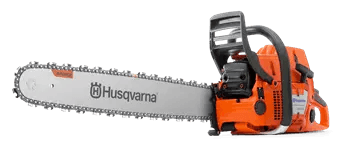

HUSQVARNA 390 XP®

Description

A modern large XP® chainsaw with a very powerful engine. Performance and vibration damping are dimensioned for sawing jobs that require longer cutting equipment. The 390 XP® heavy duty chainsaw has excellent ergonomics and comfort make it easy to handle despite its size and high power. Smart Start® facilitates starting and rubber-mounted carburettor boosts durability and smooths operation.

• Bar length (inch)
  24″
• Cylinder displacement
  88 см³
• Power output
  4.8 kW
• Weight (excl. cutting equipment)
  7.3 kg

FEATURES

Want to take a closer look? Learn more about the product in depth by exploring its design and features.

Air Injection

Extends the interval between filter cleaning, improving efficiency and increases engine life.

Adjustable oil pump

Adjustable oil pump allows you to adjust chain lubrication to suit all working applications.

Quick-release air filter

Facilitates cleaning and replacement of the air filter.

Quick chain adjustments

Side-mounted chain tensioner is conveniently located to allow quick and easy chain adjustment.

• Magnesium crankcase
• Snap-lock
• Three-piece crankshaft
• Two mass principle
• Smart Start®
• Ergonomic handles
• Inertia chain brake

Magnesium crankcase

Sturdily built crankcase withstands high rpms and tough professional use, ensuring a long service life.

Specifications

Do you need further details to make the right decision? Learn more in the specifications section below. Locate your dealer

Compare Chainsaws

 Engine

Cylinder displacement

88 см³

Power output

4.8 kW

Maximum power speed

9600 rpm

Idling speed

2700 rpm

Spark plug

Champion RCJ7Y, NGK BPMR7A

Electrode gap

0.5 mm

Torque, max.

4.7 Nm

Fuel consumption

476 g/kWh

Fuel consumption

2.26 kg/h

 Equipment

Bar length (inch)

24″

Recommended bar length, max

28 in

Recommended bar length, max

70 cm

Recommended bar length, min

18 in

Recommended bar length, min

45 cm

Chain speed at max power

21.4 m/s

Chain speed at 133% of maximum engine power speed

28.5 m/s

 Dimensions

Weight (excl. cutting equipment)

7.3 kg

 Lubricant

Oil tank volume

0.5 l

Oil pump type

Automatic

Oil pump capacity Max

24 ml/min

Oil pump capacity Min

6 ml/min

 Sound and Noise

Sound power level, guaranteed (LWA)

119 dB(A)

Sound power level, measured

117 dB(A)

Sound pressure level at operators ear

107 dB(A)

 Vibration

Equivalent vibration level (ahv, eq) front handle

6.5 m/s²

Equivalent vibration level (ahv, eq) rear handle

7.5 m/s²
